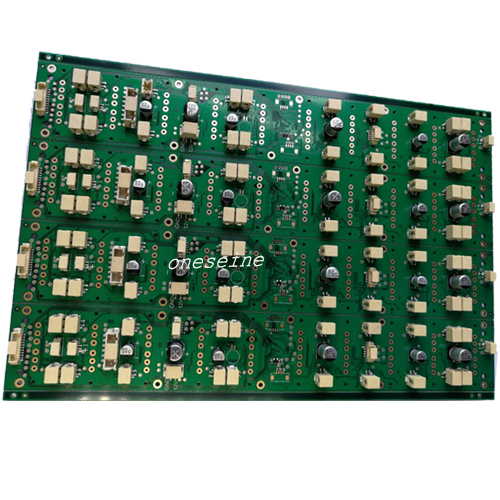

Shenzhen Touch Control Board PCB Switch Control Main Board Circuit Board Assembly

Shenzhen Touch Control Board PCB Switch Control Main Board Circuit Board Assembly

PCB basic information:

Material:Fr4

Layer:4

Board thickness:1.2mm

Surface finish:HASL lead free

Copper weight:1OZ

Brand:oneseine

Solder mask:Green

Silk screen:White

Production:PCB+Components+Assembly

Delivery time:15 days for 10 sets

PCB:Customized

Components:Sourcing

Let's dive deeper into the key aspects of PCB and assembly processes:

printed circuit board (oneseinePCB) Fabrication

This is the first step, where the bare PCB is manufactured. Key considerations include:

- PCB materials (FR-4, Rogers, flexible, etc.)

- Layer count and stackup

- Trace widths and spacing

- Plated through-holes and vias

- Surface finishes (HASL, ENIG, OSP, etc.)

- Quality control and testing

Component Procurement

All the necessary electronic components must be sourced, including:

- Active components (ICs, transistors, etc.)

- Passive components (resistors, capacitors, inductors)

- Interconnects (connectors, terminals, etc.)

- Quality and certification checks

PCB Assembly Process

The actual assembly of components onto the PCB, which includes:

- PCB preparation (cleaning, solder paste printing)

- Component placement (automated SMT, manual THT)

- Reflow soldering or wave soldering

- Inspection (optical, X-ray)

- In-circuit testing and functional testing

Additional Manufacturing Processes

Depending on requirements, the assembled PCB may go through:

- Conformal coating for environmental protection

- Board singulation or depanelization

- Final system integration and box build

- Certification testing (environmental, reliability)

Quality Assurance and Control

Robust quality processes are critical, such as:

- IPC-A-610 and other industry standards

- Statistical process control (SPC)

- Automated optical inspection (AOI)

- X-ray inspection for hidden solder joints

- Failure mode and effects analysis (FMEA)

The right combination of PCB fabrication, assembly expertise, and quality management is essential for producing reliable, high-performing electronic products.

Here's an overview of the common inspection and testing methods used in oneseine PCB assembly:

1. Visual Inspection:

- Automated Optical Inspection (AOI) - Utilizes high-resolution cameras to detect defects like missing components, misalignment, solder bridges, etc.

- Manual Visual Inspection - Skilled personnel visually inspect the PCB for any visible defects.

2. Dimensional Inspection:

- Coordinate Measuring Machine (CMM) - Measures the physical dimensions of the PCB and components to ensure they meet specifications.

- 3D Optical Inspection - Uses laser scanning or structured light to capture the 3D profile of the PCB assembly.

3. X-Ray Inspection:

- 2D X-Ray Inspection - Provides cross-sectional views to detect hidden solder joints, voids, and other internal defects.

- 3D X-Ray Inspection (AXI) - Generates a 3D image of the PCB to inspect internal structures, solder joints, and component placement.

4. In-Circuit Test (ICT):

- Checks the electrical functionality of individual components and interconnections on the PCB.

- Helps identify manufacturing defects like opens, shorts, incorrect component values, etc.

5. Functional Testing:

- Validates the overall functionality of the assembled PCB by simulating real-world operating conditions.

- May include environmental stress testing (temperature, humidity, vibration) to ensure reliability.

6. Boundary Scan Testing:

- Uses a standardized digital test access mechanism (IEEE 1149.1) to verify interconnections between components.

- Effective for complex, high-density PCBs with limited physical test access.

7. Flying Probe Test:

- An in-circuit test method that uses movable test probes to contact test points on the PCB.

- Useful for low-volume or prototype PCBs without dedicated test fixtures.

8. Destructive Physical Analysis (DPA):

- Involves physically cross-sectioning or dismantling sample PCBs to inspect internal construction and solder joints.

- Provides valuable feedback for process improvement and failure analysis.

The choice of inspection and testing methods depends on the complexity of the PCB, production volumes, and quality requirements. Combining multiple complementary techniques helps ensure a comprehensive quality assurance process.
