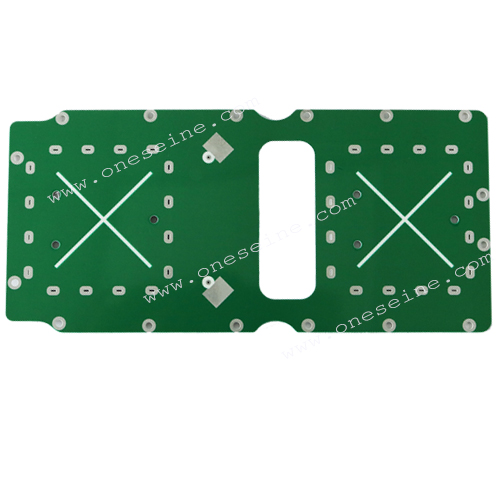

Rogers 4350 FR4 printed circuit manufacturing



Product details:


Product name: Rogers RO4350+FR4 mixed voltage high-frequency printed circuit manufacturing


Plate: Rogers Rogers4350+FR-4


Dielectric constant 3.48


Dielectric loss: 0.0013


Number of layers: 4


Plate thickness: 1.6mm


Copper thickness: 1OZ


Aperture: 0.25mm


Medium thickness: 0.508mm


Surface technology: ENIG


Sheet introduction:

The high-frequency Rogers RO4350 PCB material is based on ceramic filled PTFE laminates, which can be used in RF and microwave applications up to 40 GHz. The dielectric constant of the laminate is 3 (8-40 GHz), which can provide excellent electroplated through-hole reliability even in harsh thermal environments.


Characteristics:


1. A brand new electrolytic copper foil material with extremely low roughness (vlp ed);

2. Combining extremely low roughness electrolytic copper foil material and uniform structure, and reducing changes in dielectric constant;

3. Using advanced special fillers.


Application field:


1. Global positioning satellite antenna;

2. Cellular telecommunications system;

3. Power amplifier and antenna;

4. Patch antennas for wireless communication;

5. Broadcasting satellite;

6. Power supply backplane;

7. Automotive radar applications.
