High Frequency PCB

  • High Frequency Arlon PCB For Power Divider / Coupler / Combiner

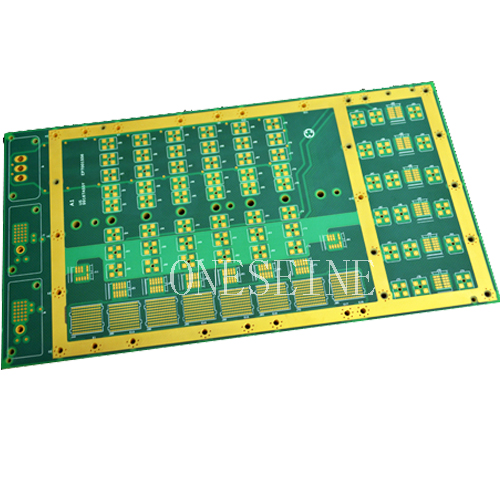

High Frequency Arlon PCB For Power Divider / Coupler / Combiner

High Frequency Arlon PCB For Power Divider / Coupler / Combiner

  • power divider pcb
  • Coupler pcb
  • Combiner pcb
  • arlon pcb
  • Product description: High Frequency Arlon PCB For Power Divider / Coupler / Combiner
  • INQUIRY

High Frequency Arlon PCB For Power Divider / Coupler / Combiner


Quick detail:

Material: ArlonAD255,other rogers/Taconic/nelco material optional

Layer:2

Thickness:30mil

DK:2.55 DF:0.0018

Size: 8*6cm

Copper weight:2oz

Surface finish: Immersion gold

All hole PTH

Name: Arlon PCB,Power divider PCB manufacturer in China

Other arlon material:

Brand

Model

Thicknessmm)

DK(ER)

DF

ARLON

AD255

0.762,1.5

2.55

0.0018

AD300C

0.762.1.524

2.97

0.002

TC350

0.254,0.762

3.5

0.002

DiClad 522

0.508,0.787

2.4-2.6

0.0018

DiClad 880

0.254,0.762

2.17

0.0009

TC600

0.508,0.889

6.15

0.002


Power Divider PCB

Power divider, is a way to the input signal energy is divided into two or more output equal or unequal energy devices, but also in turn multi-channel signal energy output all the way, this May also be referred to as a combiner. A power divider between the output ports should ensure a certain degree of isolation. Power divider according to the output is usually divided into one into two (one input two outputs), one three (one input three output) and so on. The main technical parameters of the power splitter are power loss (including insertion loss, distribution loss and reflection loss), the voltage standing wave ratio of each port, the isolation between the power distribution ports, amplitude balance, phase balance, power capacity and frequency band Width and so on.

Power divider PCB can use rogers ,Taconic,Arlon or Isola high frequency material,it is according to your design,the most important is DK and DF ,thickness

You can inform me DK,DF and thickness,we can recommend relative material for your reference


Coupler PCB

In the microwave system, always need to be a way of microwave power divided into a few proportion, which is the power distribution problem. Components to achieve this function known as the power distribution components that coupler, including: directional coupler, power distributor and a variety of microwave branch devices.

Coupler PCB just a part of coupler,but it is most important than all

So Coupler PCB require high technology and material

We have more than 7 years manufacture experience of coupler pcb,so you can send us your design file and requirements here , we will quote you within 1 hours, if scarce material, then will within 1 day

Combiner PCB

You can check our website for the detail pictures
