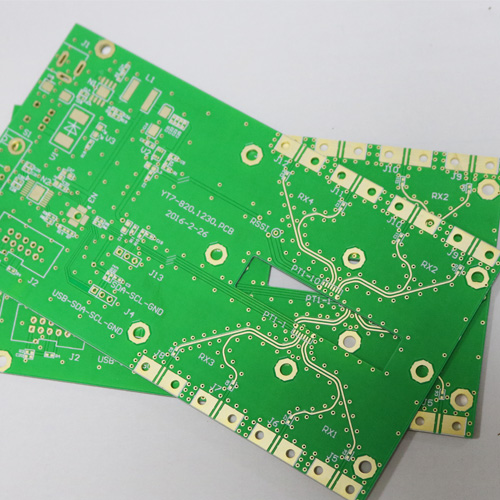

Name: High Frequency Microwave/RF Rogers PCB printed circuit boards Maker


Quick detail:

Layer:4

Technology: Rogers+Rogers,Rogers+Fr4,Rogers+Taconic(Mix stack up) fabrication

Material:RO4350B,RO4003C,RT5880,RO3003,RO3006,RO3010,RT6010 substrate

Laminate thickness:0.127MM-1.524MM

Production time:5-15days(Stock material)

Copper weight:0.5OZ-5OZ

Surface finish: Immersion gold,HASL,Immersion tin/silver Etc

Origin: Shenzhen,China

Min line space: 8mil

Min line width: 8 mil
Board size: 16*12 cm

Rogers material features and Benefits(4000series):

PTFE

• Designed for performance ,sensitive, high volume applications

Low dielectric tolerance and low loss

• Excellent electrical performance

• Allows applications with higher operating frequencies

• Ideal for broadband applications

Stable electrical properties vs.frequency

• Controlled impedance transmission lines

• Repeatable design of filters

Low thermal coeffi cient of dielectric constant

• Excellent dimensional stability ,Low Z-axis expansion

• Reliable plated through holes

Low in-plane expansion coeffi cient

• Remains stable over an entire

range of circuit processing temperatures

Volume manufacturing process

• RO4000 laminates can be fabricated using standard glass epoxy processes

• Competitively priced CAF resistant

Some Typical Applications:

• Cellular Base Station Antennas and Power Amplifi ers

• RF Identifi cation Tags

• Automotive Radar and Sensors

• LNB’s for Direct Broadcast

Rogers material features and Benefits(6000series):

• High dielectric constant for circuit size reduction

• Low loss. Ideal for operating at X-band or below

• Low Z-axis expansion for RT/ duroid 6010LM. Provides reliable plated through holes in multilayer boards

• Low moisture absorption for RT/duroid 6010LM. Reduces effects of moisture on electrical loss

• Tight, and thickness control for repeatable circuit performance

Some Typical Applications:

• Patch Antennas

• Satellite Communications Systems

• Power Amplifi ers

• Aircraft Collision Avoidance Systems

• Ground Radar Warning Systems

Rogers substrate Features(Rogers5000):

• Lowest electrical loss for reinforced PTFE material

• Low moisture absorption

• Isotropic

• Uniform electrical properties over frequency

• Excellent chemical resistance

Some Typical Applications:

• Commercial Airline Broadband Antennas

• Microstrip and Stripline Circuits

• Millimeter Wave Applications

• Military Radar Systems

• Missile Guidance Systems

• Point to Point Digital Radio Antennas

Rogers substrate in stock(Oct1-31),any other rogers model,please email me for the delivery time

Brand

Model

Thicknessmm)

Rogers

RO4003

0.254 0.5080.8131.524

RO4350

0.168,0.254 0.5080.7621.524

RT5880

0.254.0.508.0.762

RO3003

0.1270.5080.7621.524

RO3010

0.635

RO3006

0.254

RO3206

0.635MM

R03035

0.508MM

RT6010

0.635MM, 1,27MM
