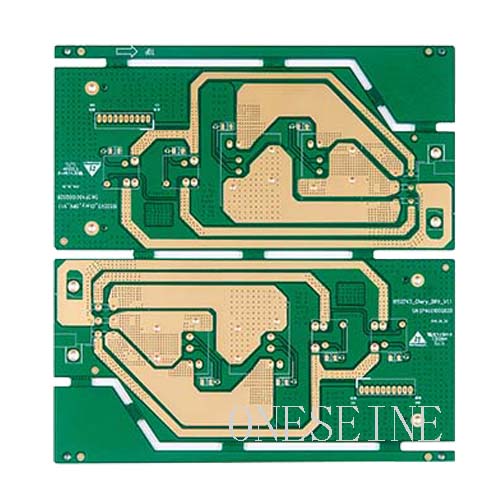

Super Thickness Copper printed circuit board Heavy Copper PCB Prototype


PCB Board Specification:

Material: FR-4, ITEQ IT-140 Tg>170°C, Er<5.4

Copper weight:5OZ

Thickness:3.0MM

Layer:4L

Solder mask:Green

Surface finish:Gold

Heavy Copper PCB introduction:

PCB copper foil with a nominal thickness of over 105μm is generally referred to as a heavy copper foil or thick copper foil. printed circuit boards made of heavy copper foil and super-thick copper foil can be called heavy copper printed circuit boards or thick copper PCB. The applications and demands of heavy copper PCB have been rapidly expanded in recent years, making it become a kind of "hot" PCB variety with a very good market prospects.

There is really no set definition of what constitutes a Heavy Copper PCB. General,in the industry label PCBs with 3 or more ounces of copper on the inner or outer layers as a heavy copper PCB.

Oneseine have made many type heavy copper pcb and extreme thick copper PCB for Customer.

such as inner layer 8 OZ, out layer 40 OZ(1.05mm).

1) The copper weight of the track ≥105μm

2) The most designs are plane winding coil of wire

3) Withstand high current and have good heat dissipation

Typical Applications

1) Power conversion module boards which are used in automotive electronics and electric equipment;

2) DC-DC converters for hybrid electric vehicles;

3) Power electronics technology
