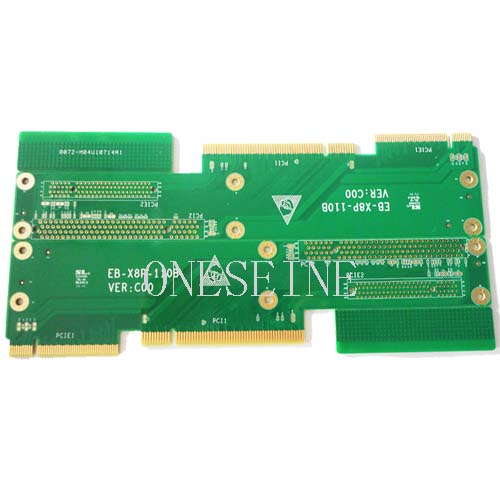

Multilayer Fr4 Industrial Control System Turnkey PCB Board
PCB Quick detail:
Layer: 4 layers
Finished thickness: 2.6mm
Min outer layer line width / distance: 0.1mm/0.11mm
Min inner layer line width / distance: 0.12mm/0.15mm
Min aperture: 0.25mm
Minimum BGA solder joint: 0.23mm
Impedance requirements: 50 ohm, Tolerance + / -10%
Surface finished: Immersion Gold
Industrial Control PCB:
Are you looking for design help with your Industrial Control PCB or printed circuit board project? Oneseine has emerged as a leading PCBA manufacturer of time-critical, high performance Industrial Control PCB, Industrial Control PCB Board, printed circuit board solutions.
Industrial Control PCB Board Specifications
High quality Industrial Control Board
-PCB & PCBA Service
-UL,SGS,Rohs Certificated
-Competitive Price,High Quality
Our Capabilities of Industrial Control PCB Manufacturing
Total Pad Size |
Standard |
Advanced |
Capture Pad |
Drill + 0.008 |
Drill + 0.006 |
Landing Pad |
Drill + 0.008 |
Drill + 0.006 |
BC Mechanical Drill (Type III) |
0.008 |
0.006 |
Laser Drill Size |
0.004-0.010 |
0.0025 |
Material Thickness |
0.0035 |
0.0025 |
Stacked Via |
Yes |
Yes |
Type I Capabilities single & Double Deep |
Yes |
Yes |
Type II Capabilities Buried Vias with Microvias |
Yes |
Yes |
Type III Capabilities |
Yes |
Yes |
Copper Filled Microvia |
Yes |
Yes |
Smallest Copper Filled Microvia |
0.004 |
0.0025 |
Copper Filled Microvia Aspect Ratio |
0.75:1 |
1:1 |
Smallest Laser Microvia Hole Size |
0.004 |
0.0025 |
Laser Via Aspect Ratio (Depth:Diameter) |
0.75:1 |
1:1 |
