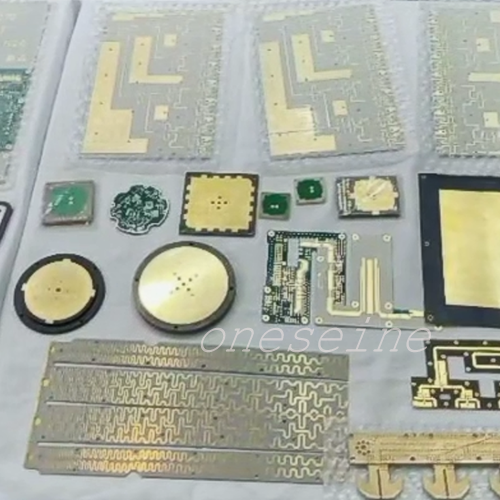

RF OCB printed circuit board manufacture


Material:Rogers 4350

Layer:2

Surface finish:ENIG

Copper weight:1OZ

RF pcb samples are provided

Why Choose ONESEINE RF PCB Manufacture

Through our 2 hours rapid response services from our 24/7 sales and tech support team, and excellent after-sales service, we will be your best RF PCB design partner in China. At oneseine we can answer any RF PCB design questions that you may have, please feel free to contact us anytime.

Popular Materials for RF PCB and Microwave PCB

Oneseine RF PCB material

Rogers    RO4003C, RO4350B, RO4360, RO4533, RO4535, RO4730, RO4232, RO4233, RO3003, RO3006, RO3010, RO3035, R03203, RO3206, RO3210, RO3730, RO5780, RO5880, RO6002, RO3202, RO6006

Taconic   TLY-5A, TLY-5, TLY-3, HT1.5, TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLC-27, TLE-95, TLC-30, TPG-30, TLG-30, RF-30, TSM-30, TLC-32, TPG32, TLG-32, TLG-34, TPG-35, TLG-35, GF-35, RF-35, RF-35A, RF-35P, RF-41, RF-43, RF-45, RF-60A, CER-10

Arlon      AD255 C03099, AD255 C06099, AD255 C04099, AD300 C03099, AD300 C04099, AD300 C06009, TC600, AD250 C02055C, TC350, MCG300CG, DCL220, CUCLAD 217LX, CUCLAD 250GX, ARLON 55NT

Wangling, Taixing F4BK225, F4BK265, F4BK300, F4BK350, F4BM220, F4BM255, F4BM265, F4BM300, F4BM350

For a successful Radio Frequency (RF) PCB manufacturing process, you should adopt strict design, fabrication and assembly procedures.

It is the only way to avoid possible crosstalk, maintain signal integrity, prevent possible component failure, and many more.

Today’s guide captures all the basic and advanced aspects of RF PCB design and fabrication.

Let’ get started.

RF PCB Design Basics

Benefits of RF printed circuit boards

RF PCB Layout Guidelines

RF PCB Design Considerations

RF PCB Design Software

RF PCB Material

Component Sourcing for RF Printed Circuit Board Design

Classification of Radio Frequency Printed Circuit Board Design

RF printed circuit board Manufacturing Process

RF PCB Design Quality Standards and Regulations

Conclusion

What is Radio Frequency Printed Circuit Board?

We can generally define RF PCB as printed circuit boards designed to operate on medium to extremely high frequencies.

Any high frequency printed circuit board which operates above 100MHz, therefore, falls in the category of radio frequency PCB.

However, when talking about RF PCBs, the actual frequency range of reference is usually from 300MHz and above.

RFs PCBs operating above 2GHz are known as Microwave PCBs.
