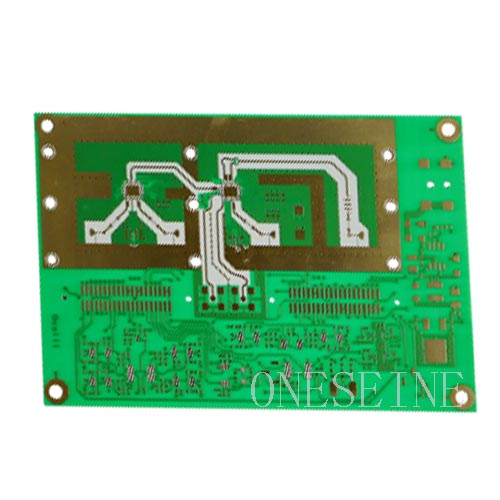

HF Multilayer Isola pcb Special Isola HIGH FREQUENCY PCB Laminate Boards


Specification:

Material: Isola laminate

Surface finish:Immersion gold,ENIG

6 layer 1.2mm thickness

Green solder mask,white silk screen

Line space and width:10mil

Certification:ISO9001/SGS/UL

Delivery time:3-7 working days


Quick detail:

Model:ONE-1

Size: 16*10cm

Copper THK:35UM

Color: Green


Most popular isola model: Isola fr402, 370TURBO, fr408HR, IS400TerraGreen

Isola pcb laminate

Isola laminate

Isola fr406

Isola 410

Isola 370HR


Application:

Automotive,Backplanes,RF / Microwave,High End Computing

Signal Integrity,Medical,Military,Mobile Devices / Wireless Handsets

Railway,Servers,Switches/Routers,Thermal Management,Wireless Infrastructure


Parameter

o.

Item

Spec

1

Layers

6 layers

2

Max working panel area

457 x 610 mm

3

Min board thickness

4 layer: 0.40mm

6 layer: 0.80mm

8 layer: 1.00mm

10 layer: 1.20mm

4

Min trace width

0.10mm

5

Min spacing

0.10mm

6

Min hole diameter

0.20mm

7

Min Copper thickness in hole

0.020mm

8

PTH size tolerance

±0.05mm

9

NPTH size tolerance

±0.025mm

10

Hole position tolerance

±0.05mm

11

Dimension tolerance

±0.1mm

12

Min solder mask dam

0.08mm

13

Insulation resistance

1E+12Ω (normal condition)

14

Max Board thickness/Hole size Rate

'10:01

15

Thermal shock endurance

288 3 times in 10sec

16

Max Board twist and wrap

≤0.7%

17

High Vlotage endurance

1.3KV/mm

18

Copper foil peel off endurance

1.4N/mm

19

Hardness of resist ink

≥6H

20

Flame resistance

94V-0

21

Material model

Isola 370HR


Advantage:

Have stock of Scarcity of isola 370HR material,short time of incoming material,save costing for you

Place of Origin:

China

Brand Name:

ONESEINE

Certification:

CE,ROHS, FCC,ISO9001

Model Number:

ONESEINE

Minimum Order Quantity:

1pcs

Price:

negotiation

Packaging Details:

Inner:vacuum packed bubble bag Outer:carton box

Delivery Time:

5-10 days

Payment Terms:

T/T,western union,paypal,L/C

Supply Ability:

1, 000, 000PCS/week
