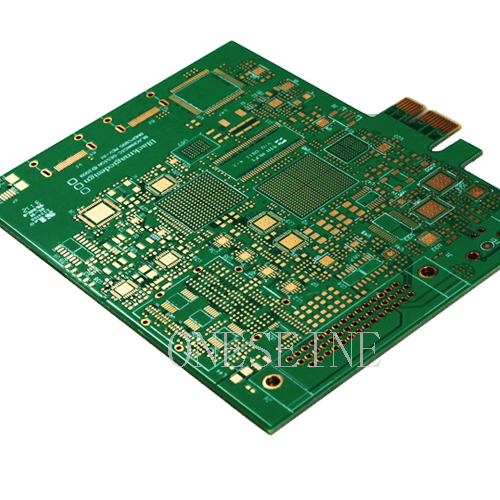

Multilayer printed circuit board With BGA Isola FR402 Material PCB


Quick Details

Place of Origin:Guangdong, China (Mainland)

Brand Name: ONESEINE PCB

Base Material: Isola FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum

Copper Thickness:1-6OZ

Board Thickness:0.4mm-8.5mm

Min. Hole Size:0.2mm

Min. Line Width:0.1mm

Min. Line Spacing:0.1mm

Surface Finishing:HASL,HAL-LF,OSP ENIG etc

Min inner Layer Clearance::0.1mm

PCBA business:OEM&ODM servise

multi-layer:1-22 layers for your choose

Silkscreen color:white black red yellow

Solder mask color:green,red,black,blue,white,etc

Warp and Twist:≤0.7%


Production Description:

1

Layer

1-30 layer

2

Material

FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2,Aluminum

3

Board thickness

0.2mm-7mm

4

Max.finished board side

500mm*650mm

5

Min.drilled hole

0.25mm

6

Min.line width

0.075mm(5mil)

7

Min.line spacing

0.075mm(3mil)

8

Soldering Cover Color

red/blue/yellow black/white/ green

9

Hole tolerance

PTH:±0.076,NTPH:±0.05

10

Copper thickness

0.5-10 oz

11

Surface treatment

HASL\OSP\ENIG\ENIS etc.

12

Profiling Punching

V-CUT / Routering


Why choose us to be your partner?

1. Quality:  Our UL/RoHS standards insure quality assembly from start to finish.

Whether it's a custom sample or mass product, ONESEINE will adhere to the highest quality standards.

2. Capability:  Oneseine offers the latest in assembly capabilities and qualifications

 insuring that quality is built into every product we produce.

3. Experience:  Our management team has over 10 years of electronic industry experience.

4.  Flexibility:  We listen to your unique and special business requirements patiently and then give our best solution fast.
