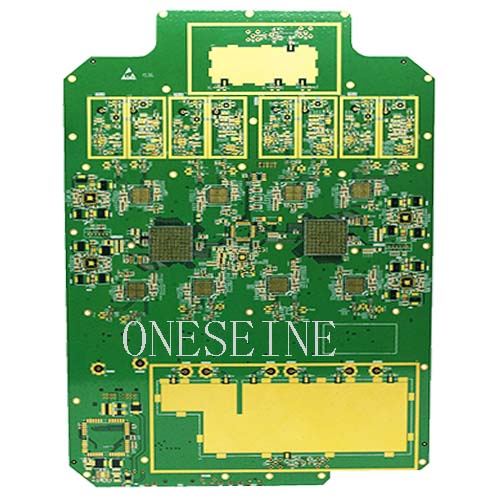

Customized Fr4 High Precision Immersion Gold PCB Printed Circuit Board Manufacturer in Shenzhen

Customized Fr4 High Precision Immersion Gold PCB printed circuit board Manufacturer in Shenzhen

Overview:

PCB Material: Nanya FR4 TG170

Layer of PCB: 8

Surface finish: Immersion gold,ENIG

Copper:3OZ

Size:9*12CM

Name:ROHS high precision immersion gold pcb

FAQ:

1.What service can you provide?

We can provide PCB gerber file design,Copy and Clone,OEM and ODM service.

Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products

2.Are my design files secure when I send them to you?

Your files are held in complete safety and security while ONESEINE Technology is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.

3.For small quantity orders, can you produce prototype PCBs?

Yes. ONESEINE Technology has the capability to produce PCBs in any amount. But,the greater the quantity, the greater the cost savings.

4.Do you have an order minimum?

We accept order with as low as a quantity of 1 (piece or panel).

5.What is the standard thickness of laminate that ONESEINE Technology uses?

1.6 mm (0.063″)

6.What are all your options for laminate thickness?

We can handle the following non-standard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).

7.Do you have the capability of manufacturing high frequency materials? Rogers?

While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.

8.What options exist for the thickness of copper?

0.5 oz, 1.0 oz, 1.5 oz, 2.0 oz, 2.5 oz, 3.0 oz, 3.5 oz, 4.0 oz, 4.5 oz and 5.0 oz.

9.What are the color options for PCB solder masks?

Green, black, blue, red green, yellow and white

10.What are the options for surface finishes?

The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.

11.What file formats do you accept for PCB assembly?

Gerber and CAM Auto CAD DXF, DWG formats.
