High Frequency PCB

  • 10 Layer Multilayer PCB Rogers Fr4 Mix Stackup Circuit Board Design For Power Amplifier
10 Layer Multilayer PCB Rogers Fr4 Mix Stackup Circuit Board Design For Power Amplifier

10 Layer Multilayer PCB Rogers Fr4 Mix Stackup Circuit Board Design For Power Amplifier

  • 10 Layer
  • Rogers Fr4 Mix Stackup
  • Power Amplifier pcb
  • hf pcb
  • Product description: hdi pcb manufacturer single sided pcb board single sided pcb 1 layer pcb one sided pcb single sided pcb design single sided pcb manufacturing process
  • INQUIRY

10 Layer Multilayer PCB Rogers Fr4 Mix Stackup Circuit Board Design For Power Amplifier


Quick Details

Place of Origin:Guangdong, China (Mainland)

Brand Name:ONESEINE

Base Material:FR4&ROGERS

Copper Thickness:0.5-6OZ

Board Thickness:0.2-7.0mm

Min. Hole Size:0.15mm

Min. Line Width:0.075mm/0.1mm(3mil/4mil)

Min. Line Spacing:3 Mil (0.075 Mm)

Surface Finishing:ENIG HASL OSP

Soldermask color:Green,yellow,black,blue,red,white,matte green

Layer:1-40 ( ≥30 layers needs review )

silkscreen color:white,black,yellow

Certificate:UL/ROHS/ISO9001


Lead Time

Layer count

Sample lead time/workday

Batch lead time/workday

1-2L

2

6

4L

5

8

6L

5

9

8L

6

10

10L

8

10

12L

8

12

14L

10

15

16L

10

18

18-40L (Up to difficulty)

at least 18

at least 24

P.S. For HDI, Blind/Buried Hole PCB: Regular Lead Time + 3 workdays

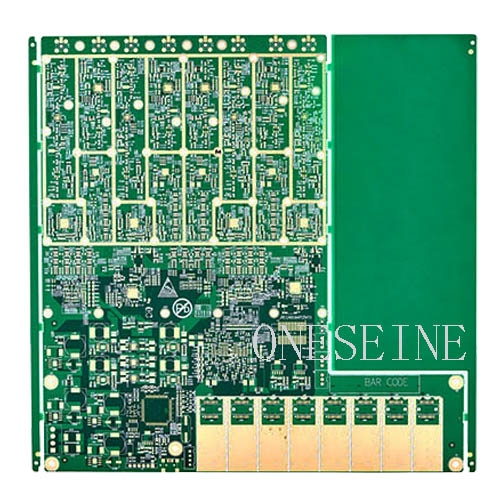

Rogers Fr4 Mix Dielectric PCB printed circuit board

How to get quick quotation?

Step 1    Please send us Gerber file with these format: .CAD / .Gerber / .PCB / .DXP / .P-CAD, etc

Step 2    Also please provide us the below details for quick quotation:

Board material: Fr - 4 / CEM - 1 / CEM - 3 / 22F / Fr - 1 / others

Material brand: SY / KB / Rogers  (optional)

Material Specification:High Tg / copper based / aluminum based or others (optional)

Board thickness: 0.1 - 6.0 mm

Copper thickness: 0.05 Oz - 8 Oz ( 17 um - 288 um )

Surface Treatment: OSP / ENIG / HASL / Lead Free HASL / Immersion Tin / Immersion Sin

Color of solder mask and silk print: Green / red / blue / black / white / yellow ,etc

Board size and quantity

If you don't have Gerber file, please provide us the imfomation as step 2 or post your PCB Board to us for clone.
