Rogers RO4003C High Frequency PCB 2 Layer 12mil Thickness Printed Circuit Boards

Rogers RO4003C High Frequency PCB 2 Layer 12mil Thickness Printed Circuit Boards

  • 0.762mm
  • Ro4003C substrate
  • 2 layer
  • Gold plated
  • Product description: rogers 4350 datasheet rogers 4450 rogers 4350 vs fr4 rogers 5880 rogers pcb material properties ro4003c 12mil rogers ro4350 lopro rogers low loss material
  • INQUIRY

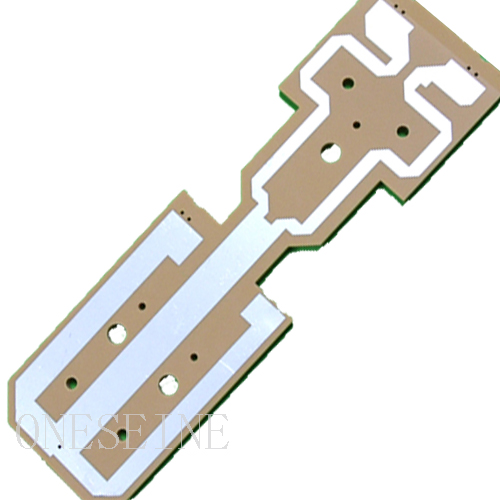

Rogers RO4003C HIGH FREQUENCY PCB 2 Layer 0.762mm Thickness printed circuit boards

Quick details:

Material: Rogers 4003C

Board size:9*3CM

Surface finish:Gold plated

Copper weight:1OZ

Number of layer:2

Solder mask:No


Rogers 4003C pcb material in stock:

Rogers4003C: thickness(0.254 0.508、0.813、1.524)   DK 3.38

Rogers4350B: thickness(0.254 0.508、0.762、1.524)   DK 3.5

Rogers5880: thickness(0.254 0.508、0.762)   DK 2.2

Rogers3003: thickness(0.127, 0.508、0.762、1.524)   DK 3

Rogers3010: thickness(0.635)   DK 10.2

Rogers3206: thickness(0.635)   DK 10.2

Rogers3035: thickness(0.508)   DK 3.5

Rogers6010: thickness(0.635,1.27)   DK 10.2


Rogers 4003C Laminate:

Volume production of microwave circuit assemblies requires fast, reliable and effi cient methods of attaching discrete microwave components to the circuit board. These could include simple two-lead devices such as resistors or diodes, or complex multi-lead MICs. Bonding techniques used for conventional epoxy glass grade laminates have been used with limited success on PTFE based laminates. However, conventional epoxy glass grade parameters are generally acceptable for the Rogers RO4000® series high frequency laminates. This application note is intended to present a general guide for device attachment to RT/duroid® and RO4000 high frequency laminates.

RT/duroid Laminate Characteristics RT/duroid laminates are random glass fi ber reinforced PTFE or ceramic fi lled PTFE materials. PTFE is a soft, waxy, thermoplastic fl uoropolymer. The glass or ceramic reinforcement adds dimensional stability and increases the hardness but the laminates are, in general, much softer than the low frequency hardboards, such as glass/epoxy. PTFE is a thermoplastic rather than a thermosetting resin. At elevated temperatures the substrate will readily deform and take a permanent set. Lead attachment methods must therefore minimize the pressure applied to the dielectric, particularly at elevated temperatures.


RO4000® High Frequency Laminate Characteristics RO4350B™ and RO4003C™ high freqeuncy laminates are glass reinforced hydrocarbon/ceramic materials. The laminate is a rigid, highly fi lled thermoset resin system which has a Tg >280°C (536°F). The high Tg helps to maintain the expansion characteristics over a wide range of temperatures. Lead attachment methods are similar to what is practiced with conventional FR4 epoxy grade laminates.


High Frequency Rogers RO4003C Laminates

Typical Applications

High reliability aerospace and defense

A wide range of typical and non-traditional microwave/RF applications


Standard Dielectric Constant:

3.38+-0.05

Standard Thickness

RO4003C: 0.008” (0.203mm), 0.012 (0.305mm),

0.016”(0.406mm), 0.020” (0.508mm) 0.032” (0.813mm), 0.060” (1.524mm)

Standard Panel Size

12” X 18” (305 X457 mm)

24” X 18” (610 X 457 mm)

24” X 36” (610 X 915 mm)

48” X 36” (1.224 m X 915 mm)

Standard Copper Cladding

½ oz. (17μm) electrodeposited copper foil (.5ED/.5ED)

1 oz. (35μm) electrodeposited copper foil (1ED/1ED)

2 oz. (70μm) electrodeposited copper foil (2ED/2ED)


Rogers 4003C datasheet:

Part Number

Compositon

Dk

Df

Volume Resistivity Mohn/cm

Surface Resistivity Mohm

Density gm/cm3

Thermal Coefficient of -50°C to 150°C ppm/°C

RO3003

PTFE Ceramic

3.00

0.0013

107

107

2.1

13

RO3006

PTFE Ceramic

6.15

0.0020

103

103

2.6

-160

RO3010

PTFE Ceramic

10.2

0.0023

103

103

3.0

-280

R03035

PTFE Ceramic

3.5

0.0017

107

107

2.1

-34 to -11

RO3203

PTFE Ceramic
Reinforced Woven Glass

3.02

0.0016

107

107

2.1

13

RO3206

PTFE Ceramic
Reinforced Woven Glass

6.15

0.0027

107

107

2.7

-212

RO3210

PTFE Ceramic
Reinforced Woven Glass

10.2

0.0027

104

104

3.0

-459

RO4003C

Hydrocarbon Ceramic

3.38

0.0027

1.7 x 1010

4.2 x 109

1.8

+40

RO4350B

Hydrocarbon Ceramic

3.48

0.0037

1.2 x 109

5.7 x 109

1.9

+50

RO4450B

Hydrocarbon Ceramic Prepreg

3.30 - 3.54

0.0040

2.5 x 1010

1.9 x 108

1.86

21 to -18

RO4450F

Hydrocarbon Ceramic Prepreg

3.52

0.0040

TBD

TBD

1.83

TBD
