  • Fr4 94V0 2 Layer Double Sided PCB Printed Circuit Boards
Fr4 94V0 2 Layer Double Sided PCB Printed Circuit Boards

Fr4 94V0 2 Layer Double Sided PCB Printed Circuit Boards

  • 9*12CM
  • 2 layer pcb
  • HASL Lead free
  • Copper weight:1.5OZ outer
  • Product description: pcb dk j pcb cem pcb pcb ims rogers ro4350 pcb low cost alu pcb 1 oz pcb pcb fr goldfinger pcb pcb fr1 rogers4003 fr4 1.6 mm al pcb pcb pi sch pcb fr1 fr4 pcb hf fr1 fr2 fr3 fr4 pcb
  • INQUIRY

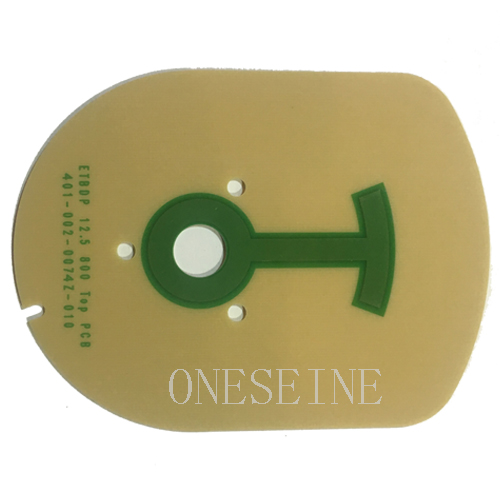

Fr4 94v0 2 Layer Double Sided PCB printed circuit boards

Basic information:

Size:9*12CM

Layer:2

Surface finish: HASL Lead free

Thickness:1.2mm

Copper weight:1.5OZ outer

Color:Yellow solder mask


FR4 copper clad is short for fiberglass epoxy resin copper clad, it’s divided into the following levels:

FR-4 A1 level CCL: This level of CCL is mainly used in military, communications, computers, digital circuits, industrial instrumentation, automotive circuits and other electronic products.

This level of CCL widely used, the technical performance indicators to meet the needs of all the electronic products.

This level of product quality and fully meet world-class level, the highest level, the best performance of the product.


Request PCB Manufacturing Quote Now

FR-4 A2 level CCL: This level of CCL is mainly used ordinary computer, instrumentation, advanced home appliances and electronic products in general. This grade series CCL widely used, the performance index can meet the general needs of industrial electronic products. A very good price-performance ratio, enabling customers to effectively improve their competitiveness.

FR-4 A3 level CCL: This level CCL is mainly used household appliances, computer peripheral products and general electronic products (such as toys, calculators, games, etc.) development and production of FR-4 product. It is characterized by its performance to meet the requirements of the premise, highly competitive prices.


Products made of epoxy glass fiber board FR - 4, FR - 1, CEM 1, CEM, thick copper foil printed circuit board, high TG PCB, heat dissipation aluminum circuit boards, ultra-small ultra-thin PCB, COB dependend PCB, ceramic plate, high-frequency boards, etc.Surface treatment: hot air leveling (HAL), the full plate electroplating nickel, gold, gold finger, unleaded tin (HASL), chemical gold/silver/tin, prevent oxidation treatment (OSP) and so on.


FR4 is a glass fiber epoxy laminate, is the Main material for PCB manufacture.FR4 glass fiber epoxy laminate surface colors: yellow FR-4, white FR-4, black FR-4,blue FR-4 and so on.We are the China's largest exporter of pcb board, we have various types of fr4 materials can be meet the different requirement of customers, and the PCB with ROHS standards, quality assurance of Fr4 materials etc., meantime to provide the most affordable price, also offer one-stop service, to protect the interests of customers.


Request PCB Manufacturing Quote Now

Product Description

94V0 Circuit board

Layer:2 Layer

Material: FR4

Mini Hole: 0.2mm

Thickness: 1.6mm

Mini Width/space: 4mil/4mil

Copper thickness: 1.5oz

Testing points:4000

Finish:HASL lead free/Immersion gold

Solder Mask:Yellow

Silkscreen: White

NO.

PCB  ITEM

Manufacture capacity

1

Layer Counts

2-22layer

2

Base Material

FR-4 / HIGH  TG  FR-4 / CEM-1 / CEM-3

3

Copper foil thickness

1oz / 1/2oz/ 1/3oz

4

PI thickness

0.5mm-3.2mm

5

Adhesive

13μm

6

Max. board size

400*800 mm

7

Product thickness tolerance

±0.05mm

8

Min. Hole Diameter

0.2mm

9

Min.Line Width

0.1mm

10

Min.Line Spacing

0.1mm

11

Etching tolerance

±0.015mm

12

PTH Hole dia. tolerance

±0.03mm

13

NPTH Hole dia. tolerance

±0.05mm

14

Outline Dimension   tolerance

±0.1mm

15

Outline profile

Punching / Laser cut / Drilled

16

Surface finish

HASL / OSP / ENIG / Immersion silver/Tin/Ni

17

Solder mask color

Multi-color

18

Silkscreen color

White/Black/Yellow/Green/Red/Blue and customized

19

Certificate

Rohs,UL,SGS,ISO9001

20

Acceptable file format

CAD / Gerber file / powerpcb / Autocad Orcad /

P-cad /

CAM-350 / CAM2000
