16 Layer Multilayer Gold Finger Fr4 2.0mm Thickness PCB Printed Circuit Boards

16 Layer  Gold Finger Fr4 2.0mm Thickness PCB printed circuit boards

Basic information:

Material:Fr4 TG180 KB material

Layer:16

Brand:One

Surface finish:Gold plated,gold finger

Board size:26*23cm

Thickness:2.0mm

Solder mask and silkscreen:Blue and white

Copper weight:35/35UM

Min line:Outer 0.1/0.1mm,Inner:0.075/0.075mm

Min hole:0.2mm

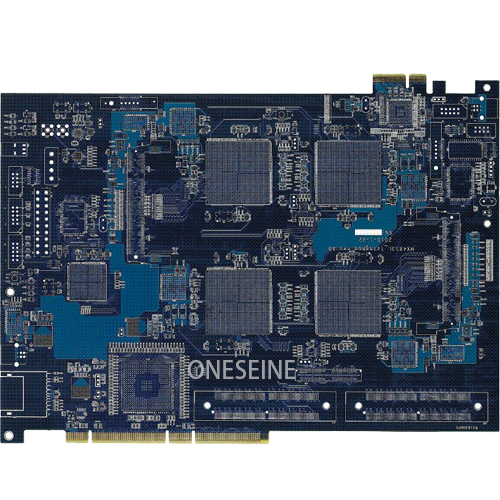

Name: 16 Layer BGA Gold Finger Fr4 2.0mm Thickness PCB printed circuit boards

Multilayer pcb manufacturing with one stop service

A printed circuit board, or PCB, holds an electronic circuit together. The completed PCB with components attached is a printed circuit board assembly, or PCBA. A multilayer PCB may have as many as 10 stacked PCBs.Other electronic components are passive elements like resistors and capacitors.

How Are Multilayer PCBs Made?

Alternating layers of prepeg and core materials are laminated together under high temperature and pressure to produce Multilayer PCBs. This process ensures that air isn't trapped between layers, conductors are completely encapsulated by resin, and the adhesive that holds the layers together are properly melted and cured. The range of material combinations is extensive from basic epoxy glass to exotic ceramic or Teflon materials.

Applications of Multilayer PCBs

While the weight and space benefits of multilayer PCBs are especially valuable for Aerospace PCBs, multilayer PCBs are also beneficial to applications where "cross-talk" levels are critical. These are a few other the applications using multilayer printed circuit boards:

Computers

File servers

Data storage

Signal transmission

Cell phone transmission

Cell phone repeaters

GPS technology

Industrial controls

Satellite systems

Hand held devices

Test equipment

X-ray equipment

Heart monitors

Cat scan technology

Atomic accelerators

Central fire alarm systems

Fiber optic receptors

Nuclear detection systems

Space probe equipment

Weather analysis
