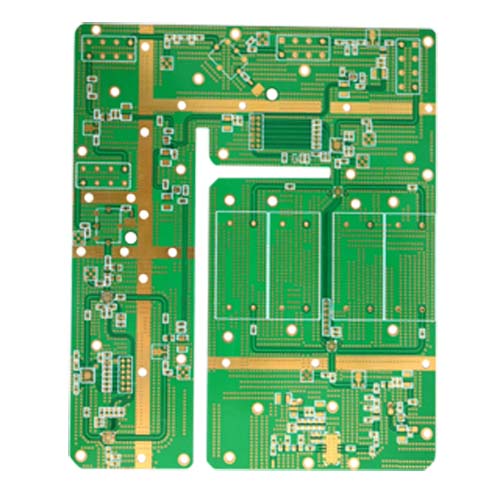

ISOLA PCB High TG Stable DK Value Substrate/Material

Quick detail:

Size: 18*10cm

Copper THK:35UM

Color: Green

Material: Isola laminate

Surface finish:Immersion gold,ENIG

6 layer 1.2mm thickness

Green solder mask,white silk screen

Line space and width:10mil

Certification:ISO9001/SGS/UL

Delivery time:3-7 working days


Most popular isola PCB material model:

Isola fr402,370HR,fr408,Isola410

Isola PCB

Isola laminate

Isola fr406

Isola 410

Isola 370HR


Isola PCB laminate Advantage:

Have stock of Scarcity of isola 370HR material,

short time of incoming material,save costing for you

Isola substrate is a high performance 180°C glass transition temperature

(Tg) FR-4 system for multilayer Printed Wiring Board (PWB)

applications where maximum thermal performance and reliability

are required. 370HR laminate and prepreg products are

manufactured with a unique high performance multifunctional

epoxy resin, reinforced with electrical grade (E-glass) glass fabric.

This system provides improved thermal performance and low

expansion rates in comparison to traditional FR-4 while retaining

FR-4 processability.

In addition to this superior thermal performance, the mechanical,

chemical and moisture resistance properties all equal or exceed

the performance of traditional FR-4 materials. The 370HR system

is also laser fluorescing and UV blocking for maximum compatibility

with Automated Optical Inspection (AOI) systems, optical positioning

systems and photoimagable solder mask imaging.

370HR has proven to be best in class for sequential lamination


Isola PCB Features

• High Thermal Performance

 Tg: 180°C (DSC)

 Td: 360°C (TGA @ 5% wt loss)

• T260: 60 minutes

• T288: 15 minutes

• RoHS Compliant

• UV Blocking and AOI Fluorescence

 High throughput and accuracy during PCB

fabrication and assembly

• Superior Processing

Closest to conventional FR-4 processing of all

high speed materials

• Core Material Standard Availability

 Thickness: 0.002″ (0.05 mm) to 0.125″

(3.2 mm)

 Available in full size sheet or panel form

• Prepreg Standard Availability

 Roll or panel form

 Tooling of prepreg panels available

• Copper Foil Type Availability

 Standard HTE Grade 3

 RTF (Reverse Treat Foil)

• Copper Weights

 1 and 2 oz (18, 35 and 70 μm) available

 Heavier copper available upon request

 Thinner copper foil available upon request

• Glass Fabric Availability

 Standard E-glass

 Square weave glass fabric available

• Industry Approvals

 IPC-4101D WAM1 /24 /121 /124

 UL - File Number E41625

 Qualified to UL's MCIL Program
