Flexible PCB

  • Double Layer flexible pcb 0.15MM thickness
Double Layer flexible pcb 0.15MM thickness

Double Layer flexible pcb 0.15MM thickness

  • rigid flex pcb board
  • flex circuit design
  • pcb rigid flex
  • 2L FPC
  • Product description: flex pcb prototype jlcpcb flexible pcb flex pcb assembly 4 layer flex pcb flexible circuit board material flex pcb stiffener flexible circuit board manufacturers flexible pcb cost rigi
  • INQUIRY

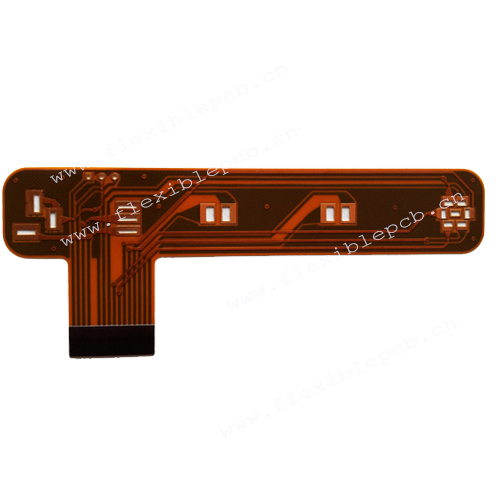

Double Layer flexible pcb 0.15MM thickness


Layer count: 2 layer flex PCB
Material: Polymide, 0.15mm, 0.5 OZ for all layer
Minimum track: 4 mil
Minimum space(gap): 3 mil
Minimum hole: 0.20mm
Surface finished: immersion gold
Panel size: 268*8mm/1up

Characteristics: Flexible,1 mil Polymide, immersion gold, PI stiffener

1. Single panel

After the completion of the circuit, a single sided PI copper clad material is used to cover it with a protective film, forming a soft circuit board with only a single layer of conductors.

2. Ordinary double-sided board

After the double-sided circuit is completed, a double-sided PI board is used to lay copper plate material, and a protective film is added to each side to form a circuit board with double-layer conductors.

3. Single panel generated by substrate

Using pure copper foil material in the circuit manufacturing process, a protective film is added on both sides successively, becoming a circuit board with only a single layer of conductor but exposed on both sides of the board.

4. Base plate generation double-sided board

Using two layers of single-sided PI copper clad board material with adhesive tape for window opening at specific locations for lamination, a double-sided conductor circuit board with a local lamination and two-layer separation structure in the local area is formed to achieve high flexural performance in the layered area of the circuit board

Flexible PCB

Items

Technology capability

Layer count

1-12 layer

Max manufacturing size

1-2 layer

430mm*1500mm

Multilayer

430mm*730mm

Board thickness

0.07mm—6.0mm

Copper foil thickness

0.25OZ-3OZ

Min line width/space

2 mil / 2 mil

Outline tolerance

Punching

+/-0.15mm

laser

+/-0.05mm

Stiffener type

FR4

0.2-6.0mm

Steel

0.2-0.4mm

PI

0.1 to 0.4mm

Impedance control tolerance

+/-10%

Surface treatment

Immersion Gold(ENIG); Immersion Tin; Immersion Ag; Gold Finger; ENEPIG,Flash Gold; Hard Gold; OSP...

Polymide thickness

0.5mil, 1mil, 2mil, 3mil, 4mil

Materials suppliers

ThinFlex, Shengyi, Taiflex, Dupont, Panasonic...
