  • Product description: Fr4 UL Specifications 94v0 PCB Circuits Boards
  • INQUIRY

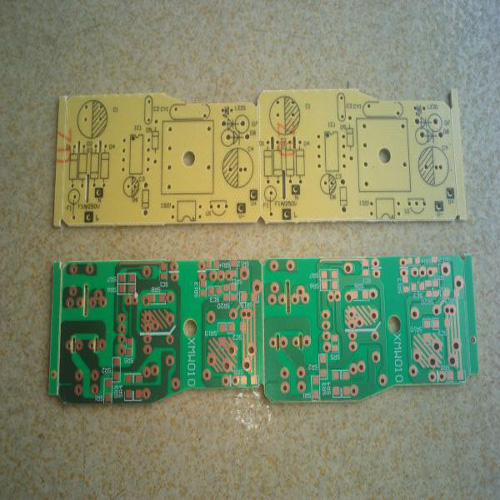

Fr4 UL Specifications 94v0 PCB Circuits Boards


General information:

Material:fr4 94v0

Layer:2

Name: fr4 94vo double sided pcb printed circuit boards

Surface finish: HASL lead free

Copper thickness:17um

PCB:Customized


What does 94V-0 mean?

We often see the flame retardant plastic UL dash; 94 V0 class, what is the meaning? UL certification that the Underwriters Laboratories conducted a variety of certification in general. UL certification on the burning of plastic in two ways: one is that we usually see the most UL dash; 94 V0, V1, V2, V5, which is the vertical burning test method; the other is generally rare To the UL94 HB, which is the level of the test method. UL94 HB: Horizontal Burning This plastic burns slowly but does not extinguish itself. This type is the lowest level of UL, often with vertical V0, V1 or V2 approach does not work when using this method. UL94 V0: Vertical Flame UL Flammability Classification system is as follows: UL94 V0 Assessment Method: After the flame is removed from the flame after the sample can quickly self-extinguish to a certain time gap without burning the melt dripping (That is, the burning melt drips on a one-foot cotton pad underneath the test sample and does not ignite the cotton). UL94 V1 evaluation method and V0 similar, but it requires a longer self-extinguishing time. This test allowed the melt to drip onto the cotton pad, but not the cotton. The UL94 V2 is the same as the V1 except that it allows the burning droplets to ignite cotton below one foot. UL94 V5 is the most stringent detection method, it relates to the actual plastic products in the flame life. The test required a flame length of 5 in. Five burns were applied to the test specimen. No droplet dripping was allowed during the test. The test sample was not allowed to distort significantly and no burnt holes.


FR4 94v0 circuit boards assembly:

Please contact us for accurate price
