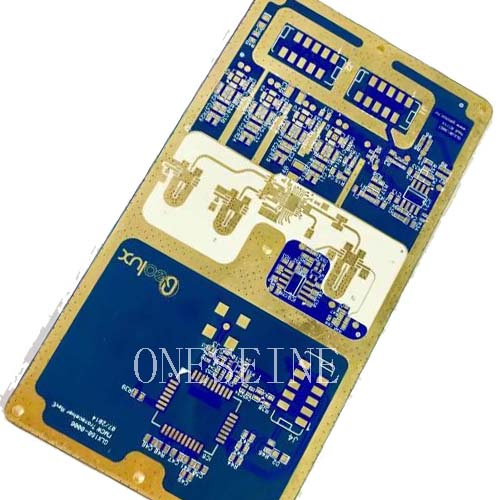

2 Layer Rogers 4350B PCB With Rigid ENEPIG Gold Electroless Nickel
Basic information:
Name:Antenna high frequency antenna amplifier
Board size:19*12CM
Surface finish:ENEPIG
Solder mask:Blue
Silkscreen:White
Material:Rogers 4350B 0.508mm
What does ENEPIG mean?
ENEPIG is the abbreviation of chemical nickel plating chemical palladium immersion gold, which is a ceramic PCB surface treatment technology widely used in the electronics manufacturing industry. The following is a detailed explanation of ENEPIG:
1. The basic concept of ENEPIG
ENEPIG, the full name is Electroless Nickel Electroless Palladium Immersion Gold, which means chemical nickel plating, chemical palladium plating, and immersion gold. This is an advanced surface treatment process, mainly used to improve the conductivity, corrosion resistance and solderability of ceramic PCBs (printed circuit boards).
2. The process flow of ENEPIG
Chemical nickel plating: First, a layer of nickel is deposited on the surface of the ceramic PCB by chemical methods. This layer of nickel not only has good conductivity, but also provides a solid foundation for subsequent plating.
Chemical palladium plating: Then, a layer of palladium is deposited on the nickel layer. The palladium layer has excellent corrosion resistance and solderability, which can protect the nickel layer from erosion by the external environment and improve the reliability during welding.
Immersion gold: Finally, the treated ceramic PCB is immersed in a gold solution to attach gold ions to the surface of the palladium layer. The gold layer not only has excellent conductivity, but also can further improve the corrosion resistance and solderability of the ceramic PCB.
III. Application advantages of ENEPIG
Improve conductivity: By depositing three layers of metal, nickel, palladium and gold, ENEPIG can significantly improve the conductivity of ceramic PCBs and ensure the stable transmission of electronic signals.
Enhance corrosion resistance: Both the palladium layer and the gold layer have excellent corrosion resistance, which can protect the ceramic PCB from erosion in harsh environments such as moisture and salt spray, and extend its service life.
Improve solderability: The gold layer has good solderability, which can ensure that the ceramic PCB forms a good connection with the components during the welding process, and improve the welding quality and reliability.
In summary, ENEPIG, as an advanced ceramic PCB surface treatment technology, has significant advantages in improving conductivity, corrosion resistance and solderability, so it has been widely used in the electronics manufacturing industry.
