  • Product description: Nelco Material PCB HF Substrate Circuit Boards
  • INQUIRY

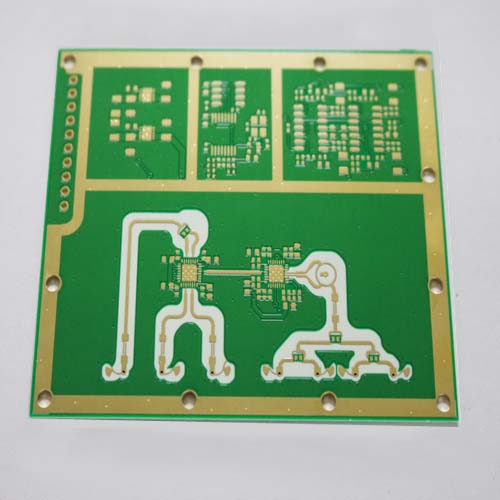

Nelco Material PCB HF Substrate Circuit Boards

PCB specification:

Materia

Nelco NY9220

Board THK

0.8mm

Layer

2

Solder mask

Green

Surface finish

Immersion gold

Line space

0.1mm

Copper THK

1OZ

Line width

0.1mm


Nelco RF and Microwave Materials

Nelco NY9220/4000 PCB printed circuit boards

A complete spectrum of reliable, high-value substrates for commercial

and military critical microwave components, antennas and subassemblies.

NY9000 series - PTFE/woven-glass composite. Low glass to PTFE ratio

NX9000 series - PTFE/woven-glass composite. High glass to PTFE ratio

NH9000 series - PTFE/woven-glass/ceramic composite. Medium glass to PTFE ratio

N4350-13 RF - controlled Dk/Df modified epoxy

N4380-13 RF - controlled Dk/Df modified epoxy

N9000-13 RF - PTFE and epoxy composite


Applications:

automotive

wireless handsets and infrastructure

hybrid RF multilayers

communications and networking

power amplifiers

B


General Parameter:

Layer

12-26

Material type

FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers,Nelco

Board thickness

0.21mm to 7.0mm

Copper thickness

0.5 OZ to 6 oz

Size

Max. Board Size: 580mm×1100mm

Min. Drilled Hole Size: 0.2 mm (8 mil)

Min. Line Width: 4mil (0.1mm)

Min. Line Spacing: 4mil (0.1mm)

Surface finishing

HASL / HASL lead free, HAL, Chemical tin,
Immersion Silver/Gold, OSP, Gold plating

Solder Mask Color

Green/Yellow/Black/White/Red/Blue

Tolerance

Shape tolerance: ±0.13

Hole tolerance: PTH: ±0.076 NPTH: ±0.05

Certificate

UL, ISO 9001, ISO 14001

Special requirements

Buried and blind vias+controlled impedance +BGA

Profiling

Punching, Routing, V-CUT, Beveling
