High Frequency PCB

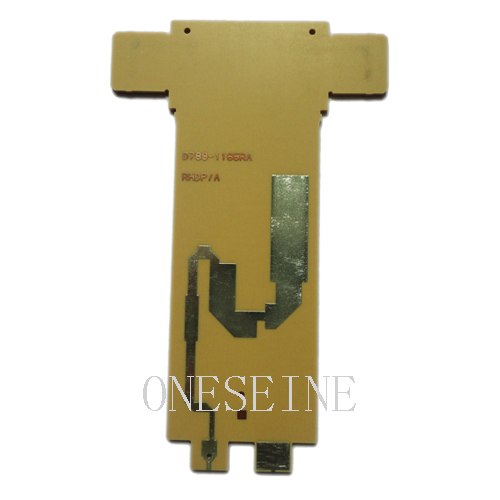

  • PTFE Teflon F4B High Frequency Circuit Board Communication Oscilator Rigid PCB
PTFE Teflon F4B High Frequency Circuit Board Communication Oscilator Rigid PCB

PTFE Teflon F4B High Frequency Circuit Board Communication Oscilator Rigid PCB

  • PTFE Teflon PCB
  • F4B material
  • 1.6mm thickness
  • 1OZ copper
  • Product description: crystal oscillator circuit design crystal oscillator pdf best practices for the pcb layout of oscillators crystal oscillator circuit diagram 16 mhz crystal oscillator circuit
  • INQUIRY

PTFE Teflon F4B High Frequency Circuit Board Communication Oscillator Rigid PCB


Specification:

Technology

Materials

Multilayer PCBs with 18 layers

Teflon F4B

PCB thickness

Final copper

1.6 mm

1OZ

Conductor track widths

Minimum drilling diameter

≥ 90 µm

0.2 mm

Contour production

Solder masks

Milling

Scoring

Photosensitive solder mask systems

UV solder mask system, screen printing

Surfaces

Additional printing



Immersion gold

Identification printing, inkjet

Component printing, screen printing

Through-hole printing

Peelable solder mask (green mask)

Masking tape

Plugging
