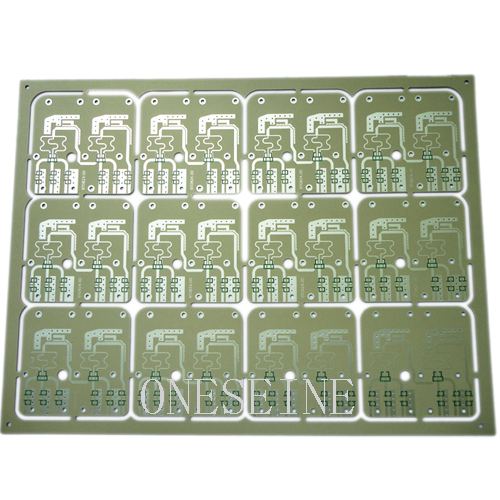

  • Product description: PCB filter amplifier pcb high frequency PCB
  • INQUIRY

Communication Filter Main Line Amplifier High Frequency Rogers PCB board Fabrication


Detailed Product Description:

Min bonding pad space

10mil

PTH aperture tolerance

10mil

NPTH aperture tolerance

10mil

Hole site deviation

10mil

Profile tolerance

±0.10mm

Board bend&warp

≤0.7%

Insulation resistance

1012Ωnormal

Through-hole resistance

300Ωnormal

Electric strength

1.3kv/mm

Current breakdown

10A

Peel strength

1.4N/mm

Soldmask regidity

6H

Thermal stress

28820Sec

Testing voltage

50-300v

Min buried blind via

N/O

Outer cooper thickness

3oz

Inner cooper thickness

3oz

Aspect ratio

8:1

SMT min green oil width

0.08mm

Min green oil open window

0.05mm

Insulation layer thickness

0.075mm-5mm

Aperture

0.2mm-0.6mm


We have sufficient rogers material raw as follow:RO4003CRO4350BRO4360RO4533RO4535RO4730RO4232RO4233RO3003RO3006RO3010RO3035RO3203RO3206RO3210RO3730RO5780RO5880RO6002RO3202RO6006,Frequently-used is 4003C,4350B,5880

So we can do pcb circuit board with your detail requirements in the case of you send us gerber files or any other files

Rogers HIGH FREQUENCY PCB widely used in the area of high technologies like communication device,Electronics,Aerospace,Military industry and so on. we have accumulated abandunt experiences in the line of high frequency microwave business for which widely apply to power divider,combiner,power amplifier,line amplifier,base station,RF antena,4G antena etc.
