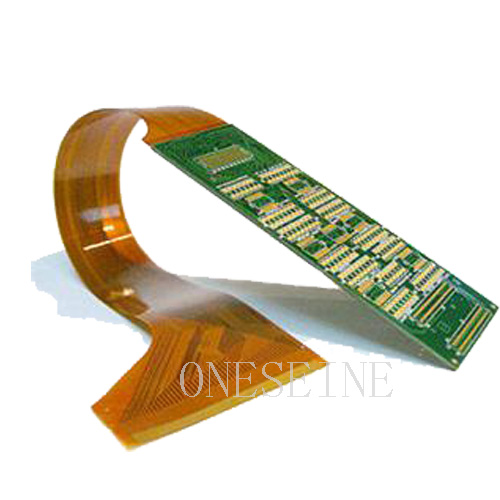

4 Layer Rigid-flex PCB Design Fabrication

4 Layer Rigid-flex PCB Design Fabrication

PCB information:

PCB board name: Rigid-flex PCB fabrication

Brand: ONESEINE

Material: Fr4+flex

Thickness:Rigid 1.2MM,Flex 0.6mm

Surface:Immersion gold

The birth and development of FPC and PCB gave birth to a new product of soft and hard bonded boards. Therefore, the soft and hard bonded board is a flexible circuit board and a rigid circuit board. After the laminating and other processes are performed, the circuit board with the characteristics of the FPC and the characteristics of the PCB is formed in accordance with the relevant process requirements.

FPC Fabrication Production process editing

Because the soft and hard bonded board is a combination of FPC and PCB, the production of soft and hard bonded board should have both FPC production equipment and PCB production equipment. First of all, the electronic engineer draws the circuit and shape of the soft-bonded board according to the requirements, and then sends it to the factory that can produce the soft-hard-bonded board. After the CAM engineers process and plan the relevant documents, the FPC production line is arranged. The FPC and PCB production lines are required to produce PCBs. After the two soft boards and hardboards come out, the FPC and the PCB are pressed together by a press machine according to the planning requirements of the electronic engineers. After a series of details, the final system is adopted. Become a soft and hard board. A very important link should be that the hard and soft board is difficult and there are many details. Before the shipment, it is generally necessary to conduct a full inspection because its value is relatively high, so as to avoid the loss of related interests caused by the supply and demand sides.

Application:

The characteristics of the hard and soft bond plate determine its application area to cover all the application fields of the FPC in the PCB, such as:

mobile phone

Key board and side keys

Computer and LCD screen

Motherboard and display, etc.

CD Walkman

Drive

NOTEBOOK.

New use

Components such as a suspension circuit (HD) of a hard disk drive and an xe package board.
