High Frequency Rogers Fr4 Mix Stack up Multilayer PCB


Specification:

Material: Rogers4350B(0.254mm)+FR4,Rogers 4003C+FR4

PP material:KB6050,prepreg pcb

Layer:10

Classify:High frequency fr4 mix stack up pcb boards

Surface finish: Immersion gold,ENIG

Size:18*28CM

Min hole:0.25MM

Copper weight:0.5OZ

Special requirements: All Vias have to be filled and capped

Product name: rogers fr4 material properties, rogers fr4 datasheet, fr4 rogers 4350

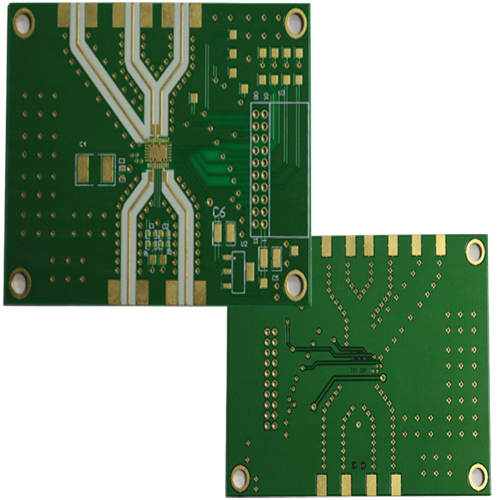

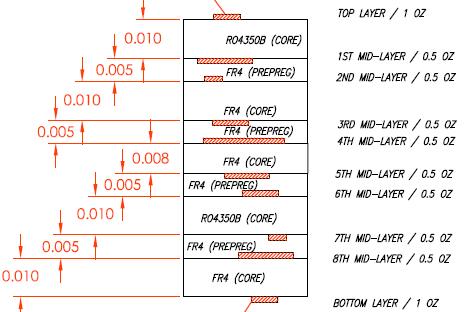

Stack up file:



Rogers Fr4:

Rogers 4003C with FR4 hybrid stackup PCB

Rogers 4350B Mixed Pressure FR4 PCB

Rogers 5880 Stack up FR4

Main signal layer use rogers material, and the second layer use fr4

PCB Rogers and fr4 mix design more cheaper than Rogers+rogers

PP material choosing:

Rogers+rogers→ rogers prepreg(4450B/4450F)

Rogers+fr4→ rogers prepreg(4450B/4450F) or fr4(KB6050/6065/SP120N)

RO4450B and RO4450F Bondply

Model

DK

DF

TG

TD

Ro4450B

3.3

0.004

280

390

Ro4450F

3.54

0.004

280

390


PCB manufacturer China,Rogers PCB,4003,4350 PCB,RF HIGH FREQUENCY PCB Manufacturing, Rapid Prototyping, Low cost production
high-frequency performance for wired and wireless communications circuits worldwide.
FR4 is very poor and only used where cost is more important than performance.Prototype PCB Dielectric Materials FR-4 vs. Rogers PCB Material Comparison
For some designs, dielectric PCB properties are critical
Whether it's high-speed designs, RF, microwave, or mobile applications-where power management is key, you're finding more situations that require dielectric PCB properties in your prototypes that standard FR-4 just can't deliver. We know that. That's why we've added Rogers 4350dielectric materials to our Quickturn product line. These new low-loss dielectric materials mean greater performance for your high-demand PCB prototype


Rogers High Frequency 4350B Material Laminate in stock
Rogers pcb material in stock:
Rogers4003C: thickness(0.254 0.508、0.813、1.524) DK 3.38
Rogers4350B: thickness(0.254 0.508、0.762、1.524) DK 3.5
Rogers5880: thickness(0.254 0.508、0.762) DK 2.2
Rogers3003: thickness(0.127,0.254,0.508,0.762,1.524) DK 3

Rogers3006:thickness(0.254) DK6.15
Rogers3010: thickness(0.635) DK 10.2
Rogers3206: thickness(0.635) DK 10.2
Rogers3035: thickness(0.508) DK 3.5
Rogers6010: thickness(0.635,1.27) DK 10.2
