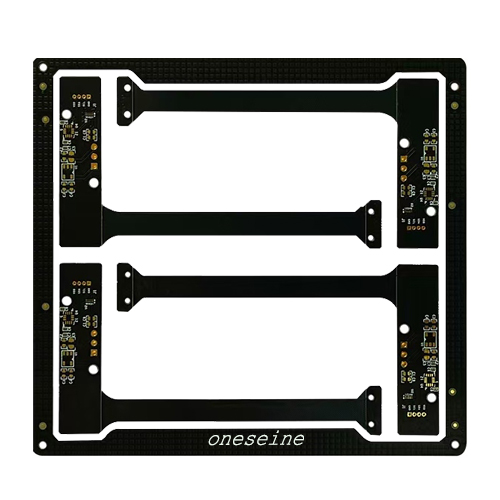

PCB parameter:

Number of layers: 4

Brand:Oneseine

Material: according to customer's needs

Minimum line width/line spacing: 0.1mm

Copper thickness: 1OZ

Surface technology: ENIG

Solder resistance: Black

Rigid Flexible Circuit Board PCB Fabrication Process:

1. Cutting: Cutting of hard board base material: Cut a large area of copper-clad board into the size required by the design.

2. Cutting the flexible board base material: Cut the original roll material (base material, pure glue, covering film, PI reinforcement, etc.) into the size required by the engineering design.

3. Drilling: Drill through holes for circuit connections.

4. Black hole: Use potion to make the toner adhere to the hole wall, which plays a good role in connection and conduction.

5. Copper plating: Plate a layer of copper in the hole to achieve conduction.

6. Alignment exposure: Align the film (negative) under the corresponding hole position where the dry film has been pasted to ensure that the film pattern can correctly overlap with the board surface. The film pattern is transferred to the dry film on the board surface through the principle of light imaging.

7. Development: Use potassium carbonate or sodium carbonate to develop the dry film in the unexposed areas of the circuit pattern, leaving the dry film pattern in the exposed area.

8. Etching: After the circuit pattern is developed, the exposed area of the copper surface is etched away by the etching solution, leaving the pattern covered by the dry film.

9. AOI: Automatic optical inspection. Through the principle of optical reflection, the image is transmitted to the equipment for processing, and compared with the set data, the open and short circuit problems of the line are detected.

10. Lamination: Cover the copper foil circuit with an upper protective film to prevent circuit oxidation or short circuit, and at the same time function as insulation and product bending.

11. Laminating CV: Press the pre-laminated covering film and reinforced plate into a whole through high temperature and high pressure.

12. Punch: Use the mold and the power of the mechanical punch to punch the work plate into the shipping size that meets the customer's production requirements.

13. Lamination (superposition of rigid-flex pcb boards)

14. Pressing: Under vacuum conditions, the product is gradually heated, and the soft board and hard board are pressed together through hot pressing.

15. Secondary drilling: Drill the via hole connecting the soft board and the hard board.

16. Plasma cleaning: Use plasma to achieve effects that conventional cleaning methods cannot achieve.

17. Immersed copper (hard board): A layer of copper is plated in the hole to achieve conduction.

18. Copper plating (hard board): Use electroplating to thicken the thickness of hole copper and surface copper.

19. Circuit (dry film): Paste a layer of photosensitive material on the surface of the copper-plated plate to serve as a film for pattern transfer. Etching AOI wiring: Etching away all the copper surface except the circuit pattern, etching out the required pattern.

20. Solder mask (silk screen): Cover all lines and copper surfaces to protect the lines and insulate.

21. Solder mask (exposure): The ink undergoes photopolymerization, and the ink in the screen printing area remains on the board surface and solidifies.

22. Laser uncovering: Use a laser cutting machine to perform a specific degree of laser cutting on the position of the rigid-flex junction lines, peel off theflexible board part, and expose the soft board part.

23. Assembly: Paste steel sheets or reinforcements on the corresponding areas of the board surface to bond and increase the hardness of important parts of the FPC.

24. Test: Use probes to test whether there are open/short circuit defects to ensure product functionality.

25. Characters: Print marking symbols on the board to facilitate the assembly and identification of subsequent products.

26. Gong plate: Use CNC machine tools to mill out the required shape according to customer requirements.

27. FQC: The finished products will be fully inspected for appearance according to customer requirements, and defective products will be picked out to ensure product quality.

28. Packaging: The boards that have passed the full inspection will be packed according to customer requirements and shipped to the warehouse

SHAPE \* MERGEFORMAT

Oneseine Flexible PCB & Rigid-Flex PCB Process  Capability

FPC Manufacturing

Flexible printed circuits (FPC) are made with a photolithographic technology. An alternative way of making flexible foil circuits or flexible flat cables (FFCs) is laminating very thin (0.07 mm) copper strips in between two layers of PET. These PET layers, typically 0.05 mm thick, are coated with an adhesive which is thermosetting, and will be activated during the lamination process. FPCs and FFCs have several advantages in many applications:

Tightly assembled electronic packages, where electrical connections are required in 3 axes, such as cameras (static application).

Electrical connections where the assembly is required to flex during its normal use, such as folding cell phones (dynamic application).

Electrical connections between sub-assemblies to replace wire harnesses, which are heavier and bulkier, such as in cars, rockets and satellites.

Electrical connections where board thickness or space constraints are driving factors.

Polyimide is a widely used flexible substrate material for flex circuit prototyping and manufacturing, and it offers several key advantages:

oneseine

1. Superior Flexibility and Durability:

   - Polyimide has excellent flexibility, allowing it to withstand repeated bending and flexing without cracking or breaking.

   - It has a high resistance to fatigue, making polyimide-based flex circuits suitable for applications with dynamic flexing requirements.

2. Thermal Stability:

   - Polyimide has a high glass transition temperature (Tg) and can operate at elevated temperatures, typically up to 260°C.

   - This thermal stability makes polyimide suitable for applications with high-temperature environments or processes, such as soldering.

3. Excellent Electrical Properties:

   - Polyimide has a low dielectric constant and dissipation factor, which helps maintain signal integrity and minimizes crosstalk in high-frequency applications.

   - It also exhibits high insulation resistance and dielectric strength, enabling the use of fine-pitch traces and high-density circuits.

4. Chemical and Environmental Resistance:

   - Polyimide is highly resistant to a wide range of chemicals, solvents, and environmental factors, such as moisture and UV exposure.

   - This resistance makes polyimide-based flex circuits suitable for applications in harsh environments or where they may be exposed to various chemicals.

5. Dimensional Stability:

   - Polyimide has a low coefficient of thermal expansion (CTE), which helps maintain dimensional stability and minimize distortion during fabrication and assembly.

   - This property is particularly important for achieving high-precision, high-density circuits.

6. Availability and Customization:

   - Polyimide-based flex circuit materials are widely available from various suppliers, making them accessible for prototyping and production.

   - These materials can also be customized in terms of thickness, copper foil weight, and other specifications to meet specific design requirements.

The combination of superior mechanical, thermal, electrical, and environmental properties makes polyimide an excellent choice for flex circuit prototyping and production, particularly for applications that require high reliability, flexibility, and performance.

Here's an overview of the flex PCB manufacturing process and some of the key challenges involved:

1. Design and Preparation:

   - Flex PCB design considerations, such as trace/space requirements, via placement, and rigid-flex integration.

   - Creation of detailed design files, including Gerber data, bill of materials, and assembly drawings.

   - Selection of appropriate flexible substrate materials (e.g., polyimide, polyester) based on the application requirements.

2. Photolithography and Etching:

   - Application of photoresist on the flexible substrate.

   - Exposure and development of the photoresist to create the desired circuit pattern.

   - Copper etching to remove unwanted copper and form the circuit traces.

   - Challenges: Maintaining dimensional accuracy and avoiding undercut during etching.

3. Plating and Finishing:

   - Electroplating of the copper traces to increase thickness and improve conductivity.

   - Application of surface finishes, such as ENIG (Electroless Nickel Immersion Gold) or HASL (Hot Air Solder Leveling).

   - Challenges: Ensuring uniform plating and avoiding defects or discoloration.

4. Multilayer Construction (if applicable):

   - Lamination of multiple flexible layers with conductive and dielectric materials.

   - Drilling and plating of vias to establish electrical connections between layers.

   - Challenges: Controlling registration and alignment between layers, managing layer-to-layer insulation.

5. Cutting and Shaping:

   - Precise cutting and shaping of the flex PCB using techniques like laser cutting or die-cutting.

   - Challenges: Maintaining dimensional accuracy, avoiding material deformation, and ensuring clean cuts.

6. Assembly and Testing:

   - Placement of electronic components on the flex PCB using techniques like surface mount or integrated assembly.

   - Electrical testing to ensure the integrity of the circuit and compliance with design specifications.

   - Challenges: Handling the flexibility of the substrate during assembly, maintaining solder joint reliability, and performing accurate testing.

7. Packaging and Protective Measures:

   - Application of protective coatings, encapsulation, or stiffeners to enhance the durability and reliability of the flex PCB.

   - Challenges: Ensuring compatibility between the protective measures and the flex PCB materials, maintaining flexibility, and avoiding delamination.

Key Challenges in Flex PCB Manufacturing:

- Maintaining dimensional accuracy and avoiding distortion during the fabrication process

- Ensuring reliable electrical connections and minimizing signal integrity issues

- Addressing adhesion and delamination concerns between layers and components

- Handling the flexibility and fragility of the substrate during various manufacturing stages

- Optimizing the manufacturing process to achieve high yields and consistent quality

Overcoming these challenges requires specialized equipment, processes, and expertise in flex PCB design and manufacturing. Collaboration with experienced flex circuit manufacturers can help navigate these complexities and ensure the successful production of reliable, high-performance flex PCBs.
