High frequency Nelco N4350 RF-13 PCB boards

High frequency Nelco N4350 RF-13 PCB boards

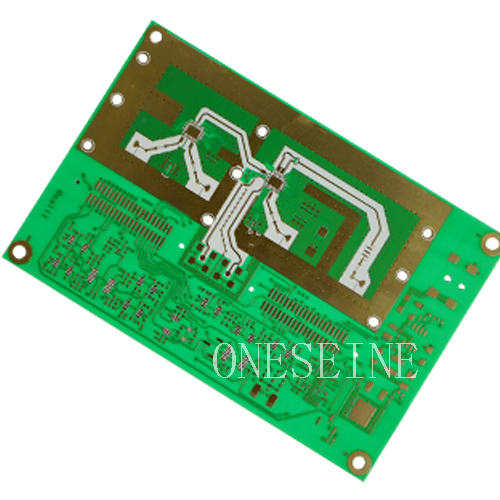

PCB specification:

Brand:Oneseine

Board material:Nelco N4350 RF013 3.3mm

Surface finish:ENIG

Layer:2

Soldermask:No

Material specification:

Nelco N4350-13 RF Nelco N4380-13 RF...

Microwave Performance, Modified Epoxy...

The Nelco N4350-13 RF and N4380-13 RF series are enhanced epoxy resin systems specifically engineered to provide a unique solution for design applications that demand outstanding thermal properties, tight dielectric constant tolerances and low signal loss properties. These next generation modified epoxies combine tightly controlled RF electrical properties with the mechanical reliability and competitive advantages of FR-4....

Nelco RF / Microwave Materials...

Applications...

- Automotive...

- 802.11 a, b and g Antennas - Power Amplifiers...

Key Features...

- Hybrid RF Multilayers - Telecommunications - High Speed Computing...

Tg >210 C, outstanding thermal, electrical and signal loss properties - Lead-free assembly compatibility - Suitable for high-layer count, sophisticated PWB, RF and Antenna designs CAF Resistant - Providing long term reliability in end products...

- Commercial RF Applications...

- Lead-Free Assembly Substrates...

Tightly controlled electrical properties - Consistency in performance-sensitive applications - Suitable for designs that would otherwise require PTFE or ceramic-loaded hydrocarbon materials - Can be used for both the RF and the digital layers in hybrid multilayer applications N4000-13 based material - Industry standard material providing years of usage data - Well-known excellent electrical and loss properties - Does not use expensive and abrasive ceramic fillers...

Global Availability...

And Much More - Vacuum laminated - Available in a wide variety of constructions, copper weights and glass styles including standard copper, double treat and RTFOIL laminate. - Meets UL 94V-0 and IPC-4101/29 specifications - All Nelco materials are RoHS compliant....

High-Tg FR-4 processing - Ease of processing through more conventional processes. - 90 min press at 193 C and 275-350 psi. - Most epoxy prepregs will adhere...

Advanced Material Technologies...

Microwave Performance, Modified Epoxy...

Nelco N4350-13 RF and N4380-13 RF...

Property / Condition...

Mechanical Properties...

Peel Strength - 1 oz. (35 micron) Cu After Solder Float At Elevated Temperature After Exposure to Process Solutions X / Y CTE -40 C to +125 C Z ...
