  • Electronic PCBA Manufacturer Industrial Control PCB Assembly
Electronic PCBA Manufacturer Industrial Control PCB Assembly

Electronic PCBA Manufacturer Industrial Control PCB Assembly

  • One-stop Service
  • Industrial control PCB assembly
  • Minimun thickness:10um
  • PCB standard:IPC-A-610 D
  • Product description: pcb assembly process pdf pcb quality control methods pcba vs pcb pcb assembly line pcb assembly notes pcb mounting methods pcba definition electronic manufacturing process flow
  • INQUIRY

Electronic PCBA Manufacturer Industrial Control PCB Assembly


Quick Details

Place of Origin:Guangdong, China (Mainland)

Brand Name:ONESEINE

Base Material:FR-4

Copper Thickness:1oz

Board Thickness:1.6mm

Min. Hole Size:0.20mm

Min. Line Width:3mi

Min. Line Spacing:4/4mil(0.1/0.1mm)

Surface Finishing:HASL lead free

Solder mask:Green

Silkscreen:white

Minimun thickness:10um

Tolerance of Impedence Control:5%

PCB standard:IPC-A-610 D

Sample:1PCS also welcome

OEM/ODM:T-SOAR One-stop Service

Certification:ISO-9001,ISO-10041,UL, ROHS

Shipment:DHL UPS TNT FEDEX EMS

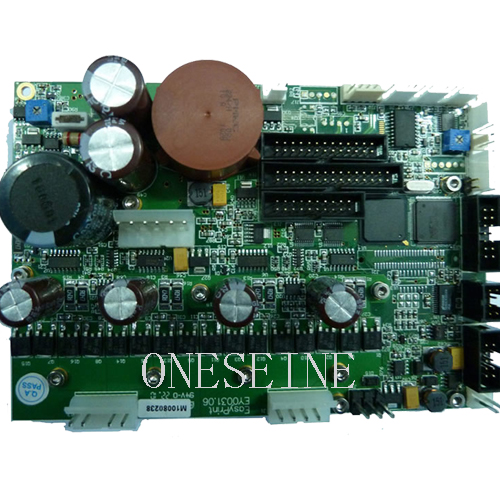

Product name:Industrial control PCB assembly

1.Main Production Equipment (8 SMT LINE 3DIP LINE)

ITEM

Device Name

Model

Brand Name

Qty

Remarks

1

Full Automatic Screen Printer

DSP-1008

DESEN

8



2

SMT Machine

YG200

YAMAHA

5



8 SMT Line

3

SMT Machine

YV100XG

YAMAHA

3

4

SMT Machine

YG100XGP

YAMAHA

19

5

SMT Machine

YV88

YAMAHA

5

6

Reflow Soldering

8820SM

NOUSSTAR

4



7

Reflow Soldering

XPM820

Vitronics Soltec

3



8

Reflow Soldering

NS-800 II

JT

1



9

Solder Paste Inspection

REAL-Z5000

REAL

1



10

Automatic Optical Inspection System

B486

VCTA

3



11

Automatic Optical Inspection System

HV-736

HEXI

5



11

X-Ray

AX8200

UNICOMP

1



12

Universal 4*48-pindrive concurrent multiprogramming system

Beehive204

ELNEC

3



13

Automatic Plug-In machines

XG-3000

SCIENCGO

2



14

Automatic wave soldering system

WS-450

JT

1

3 DIP LINE

15

Automatic wave soldering system

MS-450

JT

2

2,PCBA (PCB Assembly) Process Capability:

Technical Requirement

Professional Surface-mounting and Through-hole soldering Technology

Various sizes like 1206,0805,0603 components SMT technology

ICT(In Circuit Test),FCT(Functional Circuit Test) technology

PCB Assembly With UL,CE,FCC,Rohs Approval

Nitrogen gas reflow soldering technology for SMT

High Standard SMT&Solder Assembly Line

High density interconnected board placement technology capacity

Quote&Production Requirement

Gerber File or PCB File for Bare PCB Board Fabrication

Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly

To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders.

Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate

OEM/ODM/EMS Services

PCBA, PCB assembly: SMT & PTH & BGA

PCBA and enclosure design

Components sourcing and purchasing

Quick prototyping

Plastic injection molding

Metal sheet stamping

Final assembly

Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

Custom clearance for material importing and product exporting

Other  PCB Assembly Equipments

SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4

Reflow Oven: FolunGwin FL-RX860

Wave Soldering Machine: FolunGwin ADS300

Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service

Fully Automatic SMT Stencil Printer: FolunGwin Win-5
