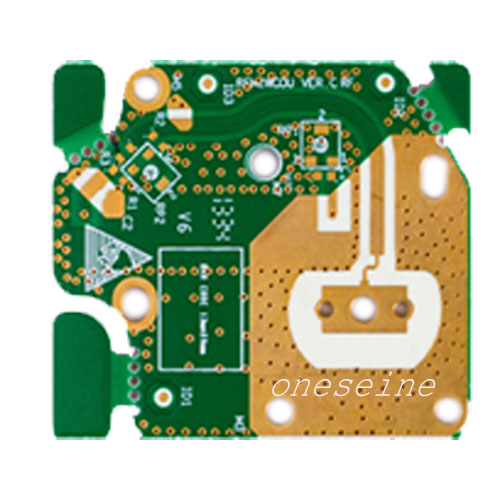

PCB Specification:

Brand:ONESEINE

PCB size:10.8*12CM

Material:TFA1020

DK value:10.2

Surface finish:ENIG

Copper:1OZ

Solder mask:Green

PTFE Ceramic PCB Fabrication with WANGLING TFA1020, Rogers 6010, Rogers 3010 | DK 10.2 Materials

In the demanding world of high-frequency electronics, your choice of printed circuit board (PCB) substrate is critical. Standard FR-4 materials simply cannot meet the performance requirements for applications like 5G infrastructure, aerospace radar, and advanced automotive systems. You need a solution that offers superior electrical properties, exceptional thermal management, and unwavering reliability.

That's where our specialized PTFE Ceramic PCB fabrication service comes in. We are experts in manufacturing high-performance circuit boards using premier materials like WANGLING TFA1020, Rogers 6010, and Rogers 3010, all with a stable Dielectric Constant (Dk) of 10.2.

Why Choose PTFE Ceramic PCBs with a Dk of 10.2?

A high and stable Dielectric Constant (Dk) is a key enabler for modern RF designs. A Dk of 10.2 allows for the creation of significantly smaller wavelength structures. This means you can design more compact circuits, antennas, and filters without sacrificing performance, which is essential for miniaturizing today's complex devices.

Our fabrication process leverages the unique advantages of PTFE (Teflon™) composites and ceramic-filled laminates to deliver boards that outperform the competition.

Key Benefits of Our High-Dk PTFE Ceramic PCBs:

Excellent Signal Integrity: The stable Dk of 10.2 ensures minimal signal delay and phase shift, which is crucial for high-frequency analog and RF circuits. You get predictable performance and reduced signal loss.

Superior Thermal Management: PTFE ceramic materials like WANGLING TFA1020 offer a very low Coefficient of Thermal Expansion (CTE), closely matching that of copper. This prevents issues like delamination and via cracking during thermal cycling, ensuring long-term reliability.

Low Loss Tangent: All our specified materials (Rogers 3010, 6010, TFA1020) feature extremely low dissipation factors (Df). This translates to less energy lost as heat, resulting in higher efficiency, better gain, and clearer signals for your power amplifiers and filters.

Ideal for Miniaturization: The high Dk value allows for the design of smaller resonant elements and transmission lines. This is perfect for compact antenna arrays, miniaturized filters, and densely packed RF modules.

Our Material Expertise: Precision Fabrication for Demanding Applications

We don't just supply boards; we provide a manufacturing partnership. Our technical expertise covers the precise handling and processing of the industry's best high-frequency materials.

WANGLING TFA1020: A high-performance PTFE/ceramic laminate known for its excellent electrical properties, mechanical stability, and cost-effectiveness for commercial and aerospace applications.

Rogers RO3010™: A ceramic-filled PTFE composite designed for commercial microwave and RF applications. It offers a stable Dk and is renowned for its lot-to-lot consistency.

Rogers RO6010™: Similar to RO3010 but engineered with a tighter tolerance on dielectric constant, making it the preferred choice for applications requiring the highest level of phase and impedance control.

Our advanced fabrication facilities are equipped to handle the specific challenges of these materials, including precise etch control, reliable plated through-hole formation, and strict impedance matching.

Who Needs Our High-Dk PTFE Ceramic PCBs?

If your project operates at radio frequencies and demands peak performance, our fabrication service is your ideal partner.

Typical Applications Include:

Base Station Antennas & Power Amplifiers for 5G/6G and LTE Networks

Automotive Radar Systems (77 GHz) for ADAS and collision avoidance

Aerospace & Defense Radar, Avionics, and EW (Electronic Warfare) Systems

Satellite Communication (Satcom) Equipment

RF Identification (RFID) Tags and Readers

High-Performance Microstrip and Patch Antennas

Your Partner in High-Frequency Innovation

Choosing the right material is only half the battle. You need a fabrication partner who understands the nuances of high-frequency PCB manufacturing. We guarantee:

Strict Impedance Control

Expert Multilayer Lamination

Superior Surface Finish Options (ENIG, ENEPIG, Immersion Silver)

Rigorous Quality Assurance & Testing

Ready to push the limits of your high-frequency design?

Contact us today for a quote or to discuss your specific project requirements. Let our expertise in PTFE Ceramic PCB fabrication with WANGLING TFA1020, Rogers 6010, and Rogers 3010 (DK 10.2) help you build a faster, smaller, and more reliable product.
