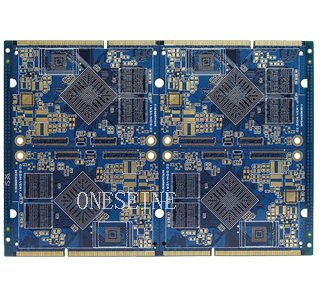

4 Layer Fr4 Roger 4003c 3 Core Fake 8 Layer Multilayer PCB Board
- 4 Layer pcb
- 3 core
- via in pad
- vias filled
- Product description: 4 Layer Fr4 3 Core Fake 8 Layer Multilayer PCB Board
4 Layer Fr4 Roger 4003c 3 Core Fake 8 Layer Multilayer PCB Board
Materail:FR4(UL RECOGNIZED COMPONENT ZPMV2, 94V-1 MINIMUM.)
Board size:80*60mm
Brand:ONESEINE
Surface finish:Immersion gold(ENIG (ELECTROLESS NICKEL IMMERSION GOLD) AFTER COPPER PLATING,PLATE ELECTROLESS NICKEL 1-4 MICRONS THICK FOLLOWED BY AN IMMERSION
GOLD PLATING 0.05-0.2 MICRONS THICK
Other request: FABRICATE TO THE REQUIREMENTS OF IPC-A-60, Via in pad sould be filled with non conductive epoxy and plated over it
Solder mask silk screen: SILKSCREEN SHOULD BE WITH WHITE, NON-CONDUCTIVE EPOXY INK
Stack up:(64.856mils+-10%)
Solder mask(2mils)
Top(1.85mils)
Roger 4003c core (10mil)
L2_GND(1.26mils)
Fr4 core(47.244mils)
L3_PWR(1.26MILS)
Roger 4003c core(10mil)
Bottom(1.85mils)
Solder mask(2mils)
