Flexible PCB

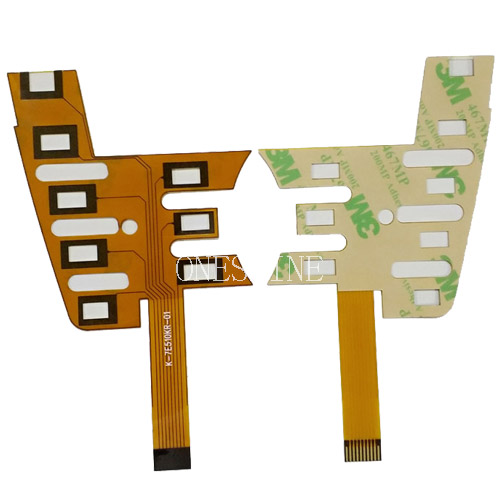

FPC single layer PCB board with 3M sticker

1 layer
ENIG
3M sticker
Tesa8853
Product description: fr4 flex pcb flexible fr4 rigid flex rigid pcb rigid flex assembly flex pcb layers flex pcb supplier rigid and flex pcb flex circuit pcb flexible circuit pcb single sided flex pcb rigid pcb
INQUIRY

Product category: FPC single panel

Basic parameters:

Application: car navigation

Type: single-sided FPC flexible circuit board

Size: 68.2 * 115mm

Tolerance: ± 0.03mm

Plate thickness: 0.13mm

PI reinforcement: 0.225mm

Surface treatment: sinking gold 1 mile

NOTE1:

Two different 3M\TESA (Tesa8853) should be sticked to the specified two areas. (on BOTTOM)

-Part1 and Part2 are two separate sticker

-3M\TESA (Tesa8853) should be sticked to the specified out of square area in Part1
