Fr4 PCB

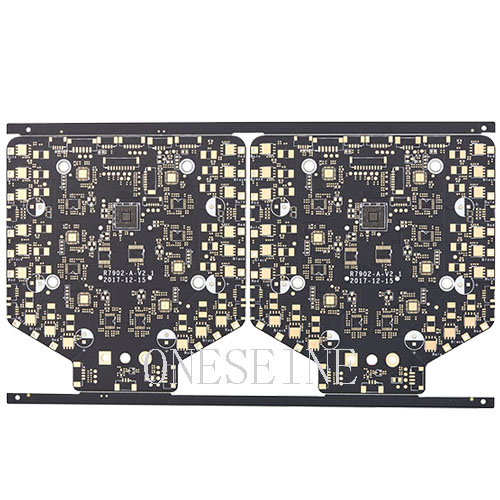

  • 6 Layer Black Solder Mask Drone Fr4 PCB Board For UAV(Unmanned Aerial Vehicle)
6 Layer Black Solder Mask Drone Fr4 PCB Board For UAV(Unmanned Aerial Vehicle)

6 Layer Black Solder Mask Drone Fr4 PCB Board For UAV(Unmanned Aerial Vehicle)

  • Black solder mask
  • drone pcb
  • 6 layer pcb
  • fr4 pcb
  • Product description: drone circuit board with remote drone circuit board price drone circuit board with remote control drone circuit board diagram mini drone circuit board drone motor
  • INQUIRY

6 Layer Black Solder Mask Drone Fr4 PCB Board For UAV(Unmanned Aerial Vehicle)


Parameter:

High precision prototype

PCB bulk production

Max Layers

1-28 layers

1-14 layers

MIN Line width(mil)

3mil

4mil

MIN Line space(mil)

3mil

4mil

Min via (mechanical drilling)

Board thickness≤1.2mm

0.15mm

0.2mm

Board thickness≤2.5mm

0.2mm

0.3mm

Board thickness2.5mm

Aspect Ration≤13:1

Aspect Ration≤13:1

Aspect Ration

Aspect Ration≤13:1

Aspect Ration≤13:1

Board thickness

MAX

8mm

7mm

MIN

2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm

2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm

MAX Board size

610*1200mm

610*1200mm

Max copper thickness

0.5-6oz

0.5-6oz

Immersion Gold/
Gold Plated Thickness

Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”

Hole copper thick

25um 1mil

25um 1mil

Tolerance

Board thickness

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%

Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
 Board thickness>2.0mm:+/-8%

Outline Tolerance


≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
 >300mm:+/-0.2mm

≤100mm:+/-0.13mm
100<  ≤300mm:+/-0.15mm
 >300mm:+/-0.2mm

Impedance

±10%

±10%

MIN Solder mask bridge

0.08mm

0.10mm

Plugging Vias capability

0.25mm--0.60mm

0.70mm--1.00mm



 Why choose us:

11 rich experience manufacturer for UAV pcb, custom unmanned aerial vehicle with design files

Professional Flight Electronic Control Circuit Board FPV UAV Control PCB Board Quadcopter Drone

RC helicopter flight control circuit board FPV/UAV control pcb board Quadcopter drone control board

Fast PCB prototype, production time+delivery time maybe only 6 days within 24 hours quick sample service.

Prototype PCB, no min quantity required ,1pcs is OK!

One-off tooling charge, conducive to repeat order PCB .

Quick Turn PCB, get detailed and exact quotation within 1 hours.

Keep all costs to min and max our customers' benefits!

Low cost PCB, you can save money on your prototype production.
