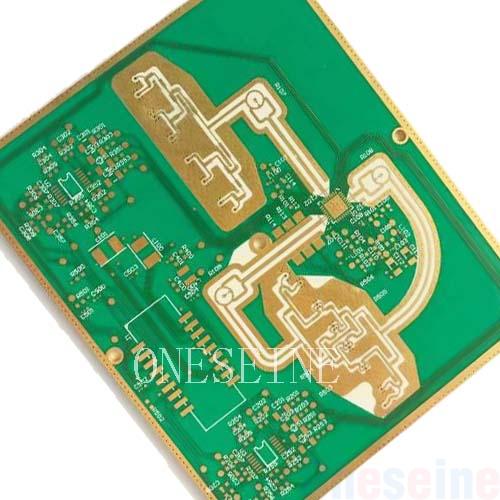

Fr4 Rogers 6006 Mix Stack up Multilayer PCB


Basic information:

Surface finish:Gold plated

Solder mask:Green

Silkscreen:White

Material:Rogers 6006 &Fr4 high frequency

Board size:12*10CM

Thickness:1.0mm

Rogers 6006 information:

RT/duroid 6006 microwave laminates are ceramic-PTFE composites designed for electronic and microwave circuit applications requiring a high dielectric constant. RT/duroid 6006 laminate is available with a dielectric constant value of 6.15 and RT/duroid 6010LM laminate has a dielectric constant of 10.2.

RT/duroid 6006 microwave laminates feature ease of fabrication and stability in use. They have tight dielectric constant and thickness control, low moisture absorption, and good thermal mechanical stability.

RT/duroid 6006 laminates are supplied clad both sides with ¼ oz. to 2 oz./ft2 (8.5 to 70 μm) electrodeposited copper foil. Cladding with rolled copper foil is also available. Thick aluminum, brass, or copper plate on one side may be specifi ed.


Typical Applications

Space Saving Circuitry

Patch Antennas

Satellite Communications Systems

Power Amplifiers

Aircraft Collision Avoidance Systems

Ground Radar Warning Systems


Key Benefits

High dielectric constant for circuit size reduction

Low loss. Ideal for operating at X-band or below

Tight εr and thickness control for repeatable circuit performance
